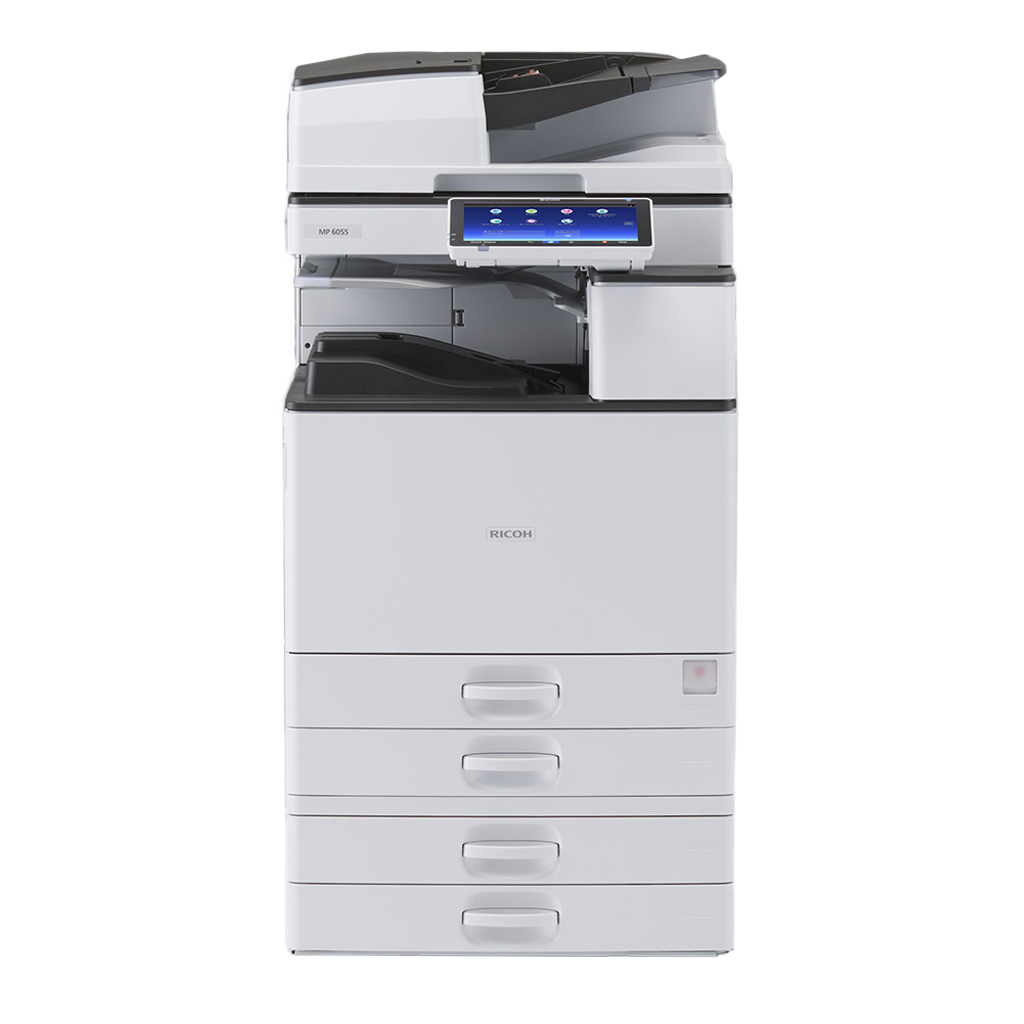

MP 4055SP A3 black and white MFP
- Copy, print, scan, and optional fax
- Prints up to 40 ppm
- 1,200 x 1,200 dpi
- 1.7 kWh TEC
Get more work done, from your desk, meeting room or on your phone. The MP 4055SP is a fast printer, scanner and copier that offers shortcuts and mobile access.
- Finish in style
Choose from folding, hybrid stapled/stapleless finishers and enhance paper capacity to produce professional documents. - Fast scanning
Automatic or Single Pass Document Feeder for high speed scanning. - Powerful technology
Intel processor, 2GB memory and 320GB hard drive easily handles big files. - High quality
Documents are set to impress with 1200 x 1200 dpi resolution.
Print more, affordably
Send less work to print suppliers and do more in your office. Print on different paper weights, up to A3 in size. Add optional finishers to produce stapled booklets. Automatic double sided printing and low energy consumption help reduce costs. Find what you need with the intuitive Smart Operation Panel. You can tailor settings to reflect popular jobs for scanning, copying and printing. Access often used documents straight from the printer, with storage for up to 3,000 files.
Apps to make it easier
Share information and print from your smartphone or tablet with the Ricoh Smart Device Connector app. It can access documents from cloud applications like Google Drive, Dropbox and One Drive. The Connector App also allows smartphone or tablet, printing device, projector and white boards all to communicate with one another. It’s available for both Android and iOS.
Download PDF brochure
Specifications
- Functions
- Copy, print, scan, optional fax
- HDD
- 320 GB
- Memory - standard
- 2 GB
- Operation panel
- 10.1-inch tilting colour WSVGA Smart Operation Panel
- Physical dimensions (WxDxH)—mainframe
- 587 x 684 x 788 mm
- Physical dimensions (WxDxH)—other
- 668 x 769 x 1,035 mm—mainframe with 550 sheet x 2 paper bank PB3220 and fall prevention material
587 x 684 x 913 mm—mainframe with ARDF
668 x 769 x 1,160 mm—mainframe with ARDF, 550 sheet x 2 paper bank PB3220, and fall prevention material
587 x 684 x 963 mm—mainframe with SPDF
668 x 769 x 1,210 mm—mainframe with SPDF, 550 sheet x 2 paper bank PB3220, and fall prevention material
587 x 520 x 175 mm—SPDF DF3100
565 x 500 x 125 mm—ARDF DF3090
561 x 497 x 63.8 mm—Platen cover PN2000
587 x 685 x 120 mm—550-sheet x 1 paper bank PB3250
587 x 685 x 247 mm—550-sheet x 2 paper bank PB3220
587 x 685 x 247 mm—1,000-sheet x 2 LCT PB3260
340 x 544.5 x 290 mm—1,500-sheet LCT (side) RT3030
444 x 450 x 150 mm —1-bin tray BN3110
538 x 450 x 150 mm —1-bin tray BN3110 with tray extended
420 x 489 x 107 mm—Shift sort tray SH3070 internal
447 x 486 x 107 mm—Shift sort tray SH3070 internal with tray extended
676 x 549 x 156 mm—Side tray M3
800 x 549 x 156 mm—Side tray M3 with tray extended
412 x 466 x 143 mm—Bridge unit BU3070
563 x 620 x 960 mm—1,000-sheet hybrid finisher SR3210
546 x 523 x 170 mm—500-sheet internal finisher SR3130
720 x 523 x 170 mm—500-sheet internal finisher SR3130 with tray extended
657 x 613 x 960 mm—3,000 sheet finisher SR3230
657 x 613 x 960 mm—2,000-sheet booklet-finisher SR3240
756 x 613 x 960 mm—2,000-sheet booklet-finisher SR3240 with tray extended
563 x 620 x 960 mm — 1,000-sheet booklet finisher SR3220
612 x 555 x 184 mm—Multi-folding unit FD3000 internal without extension tray
724 x 555 x 184 mm—Multi-folding unit FD3000 internal with extension tray - Weight—mainframe
- 62.5 kg or less
- Weight—other
- 84.6 kg or less—mainframe with 550 sheet x 2 paper bank PB3220 and fall prevention material
71 kg or less—mainframe with ARDF
93.1 kg or less—mainframe with ARDF, 550 sheet x 2 paper bank PB3220, and fall prevention material
76.5 kg or less—mainframe with SPDF
98.6 kg or less—mainframe with SPDF, 550 sheet x 2 paper bank PB3220, and fall prevention material
13.9 kg or less—SPDF DF3100
8.2 kg or less—ARDF DF3090
2.3 kg or less—Platen cover PN2000
10.9 kg or less—550-sheet x 1 paper bank PB3250
22.1 kg or less—550-sheet x 2 paper bank PB3220
22 kg or less—1,000-sheet x 2 LCT PB3260
9.8 kg or less—1,500-sheet LCT (side) RT3030
1.4 kg or less—1-bin tray BN3110
1.4 kg or less—Shift sort tray SH3070 internal
3.8 kg or less—Side tray M3
3.2 or less—Bridge unit BU3070
27 kg or less—1,000-sheet hybrid finisher SR3210
12.8 kg or less—500-sheet internal finisher SR3130
33.5 kg or less—3,000 sheet finisher SR3230
38 kg or less with punch unit—3,000 sheet finisher SR3230
52.5 kg or less—2,000-sheet booklet-finisher SR3240
56.5 kg or less with punch unit—2,000-sheet booklet-finisher SR3240
39.6 kg or less—1,000-sheet booklet finisher SR3220
15 kg or less—Multi-folding unit FD3000 internal
- Standard input capacity (sheets)
- 1,200
- Maximum input capacity (sheets)
- 4,700
- Standard output capacity (sheets)
- 500
- Maximum output capacity (sheets)
- 3,625
- Supported media
Standard paper input trays
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4Optional paper banks
Bypass tray
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, OHP transparencies, label paper, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4- Maximum paper size
- A3
- Media weight (g/m2)
- 52–300
- Interfaces - standard
- Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host Type A—2 ports
NFC tag
Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)
Bluetooth 4.0
SD card slot
USB Host Type A—USB Flash memory
USB Host Type A—External keyboard
USB Host Type mini B—NFC card reader - Interfaces - optional
- IEEE 1284/ECP
IEEE 802.11a/g/n (Wireless LAN)
USB 2.0 Type B - Network protocols - standard
- TCP/IP (IPv4, IPv6)
- Copy speed
- 40 cpm
- First copy time
- 4.0 seconds
- Copy resolution
- 600 x 600 dpi
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 115%, 122%, 141%, 200%, 400%
- Reduction ratios
- 93%, 82%, 75%, 71%, 65%, 50%, 25%
- Duplex copy
- Single-sided to duplex, duplex to duplex—with document feeder, book to duplex, front and back to duplex
- Book copy
- Booklet, magazine, layout, and booklet
- ID card copy
- Supported
- Print speed black and white
- 40 ppm
- Printing process
- Twin laser-beam scanning and electrophotographic printing
- Print resolution
- 1,200 x 1,200 dpi—1-bit
- Page description languages (PDLs)
Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulationOptional
Adobe PostScript 3, PDF Direct from Adobe- Printer drivers
Standard
PCL 5e, PCL 6, PostScript 3 emulationOptional
Adobe PostScript 3- Duplex printing
- Standard
- Mobile printing
- Yes
- Print from USB/SD
- Supported
- Scan speed
A4 LEF, 200 x 200 dpi, 300 x 300 dpi
Via ARDF
80 ipmVia SPDF
110 ipm—single-sided
180 ipm—duplex- Scan methods
- Scan to USB/SD, Scan to email, Scan to webmail,
Scan to folder (SMB, FTP), Scan to PDF/A, Scan to URL, Scan to searchable PDF
Note: Optional OCR unit is required to support scanning to a searchable PDF. - Scan resolution
- 100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi; default 200 x 200 dpi - Original size
- A3
- Scan to file types
Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF- Scan to file type support
Single- and multi-page TIFF
Black and white 1-bit—MH, MR, MMR—compression on
Black and white 1-bit, black and white greyscale, full colour—compression offSingle-page JPEG
Black and white greyscale, full colour—compression onSingle- and multi-page PDF, PDF/A
Black and white 1-bit—MH, MR, MMR, JBIG2, black and white greyscale JPEG, full colour JPEG—compression on
Black and white 1-bit, black and white greyscale, full colour—compression offSingle- and multi-page high compression PDF
Black and white greyscale, full colour JPEG, JPEG 2000—compression on- Scan to email
Protocols
SMTP gateway, POP, IMAP4Authentication
SMTP authentication, POP before SMTP authenticationScan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpiScan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDFMulti-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDFNote: Optional OCR unit is required to support scanning to a searchable PDF.
- Scan to email—other features
Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—100 groups, 500 addresses per group
Search method—via operation panel, Web Image MonitorLDAP search
SupportedMaximum email addresses per send
500—from HDD
100—direct input
100—via LDAPSimultaneous transmission
Maximum 550 destinationsAttention
To, Cc, BccScan to email size
128–102,400 KB—with restriction
2,000 MB—without restrictionInput subject
Manual input
Maximum 128 characters
1 byte—maximum 128 characters
2 bytes—maximum 64 charactersUser pre-registered
22 subjects—maximum 20 characters per name
1 byte—maximum 20 characters
2 bytes—maximum 10 charactersInput body message
Manual input
Maximum 80 characters via operation panel
1 byte—maximum 80 characters
2 bytes—maximum 40 charactersUser pre-registered
Maximum 400 characters, 80 characters over 5 lines
1 byte—maximum 400 characters
2 bytes—maximum 200 charactersPreset message
SupportedInput file name
SupportedProgram registration
Up to 25 programsDivide and send
Divide by page or size; default divide by sizeNote: If the sent file is larger than the email size restriction, it will be divided into multiple sends. The size restrictions of the email recipient may also impact the send.
Resend
Yes, No; default Yes- Scan to folder
Protocols
SMB, FTPSecurity
Client folder logon, transmission encryption of logon name and passwordResolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpiSearch for client folders
SMB—browsing directly to the designated folder
FTP—by folder nameScan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDFMulti-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDFNote: Optional OCR unit is required to support scanning to a searchable PDF.
- Scan to folder—other features
Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses via operation panel, Web Image MonitorDestination folder address input via operation panel
SMB—network path->client folder->password
FTP—server->network path->user account->password
NCP—network path->user account->password->bindery or NDSHomefolder over LDAP
SupportedMaximum client folders/PCs per send
50 foldersSimultaneous transmission
550 destinations maximumMaximum group addresses
500 destinations from a maximum of 50 foldersInput file name
SupportedInput subject
Maximum 128 characters via operation panel
1 byte—maximum 128 characters
2 bytes—maximum 64 charactersMaximum file size
Default
2,000 MBWhen combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restrictionNote: File size depends on the selected Scan to email file size restriction.
Program user settings
Up to 25 programsResend
Yes, No; default Yes- TWAIN scanning
Scan mode
Standard, Photo, OCR, FilingScan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpiNote: Selectable maximum resolution depends on the original size.
- TWAIN scanning—other features
Scan speed—A4 LEF, 200 x 200 dpi, black and white or colour
Via ARDF
72 ipmVia SPDF
104 ipmImage adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone PatternEndorse
Date, Page number, TextStamp originals
SupportedSupported operating systems
32-bit, 64-bit
Windows Vista, Windows Server 2008, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 201264-bit
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2Note: Operates in 32-bit compatibility mode on 64-bit operating systems.
- Fax types
- G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 3 lines
- Fax scanning speed
A4 SEF
58 spm—Standard and Detail mode
48 spm—Super Fine modeA4 LEF wth image rotation
68 spm—Standard mode
63 spm—Detail mode
34 spm—Super Fine mode- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
Standard mode
100 x 200 dpi—8 x 3.85 lines/mmDetail mode
200 x 200 dpi—8 x 7.7 lines/mmSuper fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mmNote: Super fine mode is supported with the optional SAF memory.
- G3 fax transmission speed
- 100 x 200 dpi
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission - Page memory size
- 8 MB—standard
16 MB—with optional SAF memory - Fax SAF memory capacity
Standard
4 MB—approximately 320 pagesWith optional SAF memory
60 MB—approximately 4,800 pages- Quick dials
- 2,000 numbers
- Automatic reduction
- Supported
- DataOverwriteSecurity System (DOSS) – Standard
- Yes
- Encryption
- HDD, PDF, Secure print encryption
Address book, authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME) - Authentication
- DHCP option 60 and 77
802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2, WEP)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support
Network user authentication
- Windows
- Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10 - Macintosh
- OS X Native v10.9 or later—PostScript 3 only
- Unix
- Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4, 5, 6
SCO OpenServer—5.0.7, 6.0
IBM AIX—5L Version 5.3, 6.1, 7.1 - SAP
- Environment—R/3 3.0 and higher
Platform—SAP R/3, SAP R/3 Enterprise, mySAP ERP, SAP HANA
PDL—PCL
Character set—Latin-1, Latin-2, Unicode
Document types—SAPScript, Smartforms, ABAP
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B - Supported languages
- Operation panel languages
Japanese, English, French, German, Italian, Spanish, Dutch, Norwegian, Danish, Swedish, Polish, Portuguese, Hungarian, Czech, Finnish, Simplified Chinese, Traditional Chinese, Russian, Greek, Catalan, Turkish, Brazilian Portuguese, Korean, Thai
- Standard
- @Remote Embedded
Java SDK
Web Image Monitor - Optional
- @Remote Office
Card Authentication Package
Card Authentication Package Server
Device Manager NX
FlexRelease CX
Enhanced Locked Print NX
Enhanced Locked Print NX FlexRelease Server
GlobalScan NX
Printer Driver Packager NX
Streamline NX
Printer as a Service (PaaS) - Mobile apps
- Smart Device Connector
Smart Device Print&Scan
- Power source
- 220-240 V, 50-60 Hz, 8 Amps—Asia Pacific
110 V, 60 Hz, 13.6 Amps—Taiwan - Power consumption
- 1,780 W or less—maximum
600.7 W—operating power
48.8 W—Ready Mode
0.82 W—Energy Saver Mode (Sleep Mode) - Typical Electricity Consumption (TEC)
- 1.7 kWh
- Warm-up time
- 20 seconds
- Power saving mode
- 60 seconds shift time—Energy Saver Mode (Sleep Mode)
- Recovery time
- 8.0 seconds—Energy Saver Mode (Sleep Mode)
- Energy saving standards
- Energy Star v1.1
Energy Star v2.0 - Identification of plastic components
- All plastic components are identified in accordance with ISO 11469 standards.
- Other environmental features
- Eco-friendly indicator, On/off timer, Remote Power Off, Default duplex printing, Eco counter
