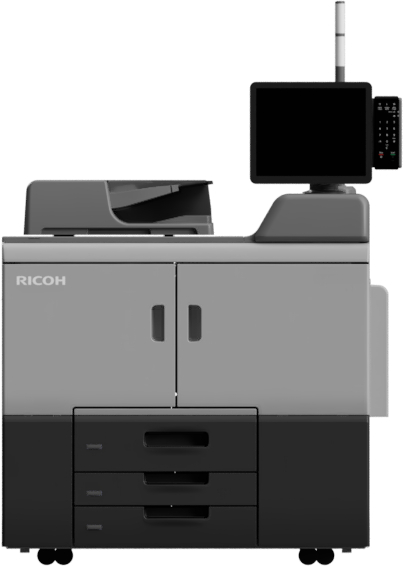

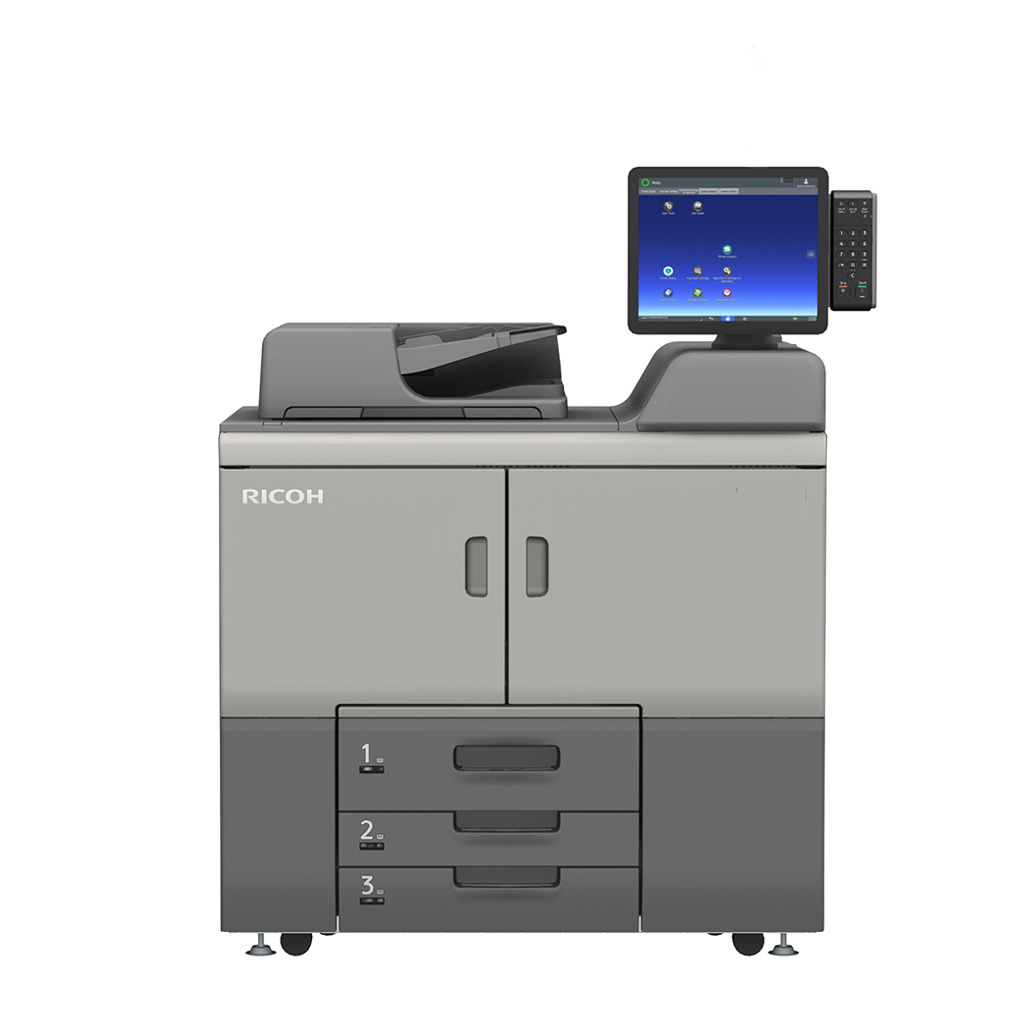

Pro 8300S

Pro 8300S

The Pro 8300S is a high-volume, black and white digital production printing device, which provides print, copy, and scan functionality as standard.

It has a print speed of 96 ppm, comes with a GWNX controller as standard, and can be upgraded by adding the optional Fiery EB-35 controller.

The Pro 8300S supports paper sizes of up to 13” x 19.2”, a maximum paper weight of 350 g/m2, and wide range of special media including envelopes and No Carbon Required (NCR) paper.

It also comes with various technology enhancements and mechanical innovations that provide improved performance, better media handling, versatile finishing options, and greater usability.

The Pro 8300S is targeted at school and general office customers because of its support for new slimline finishers that give it a smaller overall system size.

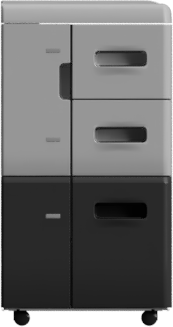

LCT RT5130

Optional Large Capacity Tray accommodates paper sizes up to A4 and significantly increases the capacity of the device.

Configuration: Console type
Capacity: 5,000 sheets (1,100 sheets x 2 trays, 2,800 sheets x 1 tray)

Line speed:
Feeding
555 mm/s—Type A
736 mm/s—Type B
985 mm/s—Type C
Processing, Shifting
432 mm/s—Type A
500 mm/s—Type B
640 mm/s—Type C

Paper size: A4, B5, A5
Oversize paper: 305 x 230 mm, needs to be set in SP Mode
Paper weight: 52.3–216 g/m2 (Trays 4 and 5); 52.3–163 g/m2 (Tray 6)
Air assisted paper feed: Not available
Tray security lock: Supported with all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Power source: From mainframe
Power consumption: 210 W
Dimensions (W x D x H): 540 x 730 x 1,000 mm
Weight: 106 kg or less

Notes:
Cannot be installed with LCT RT5110,Vacuum-Feed LCT RT5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Multi-Bypass Tray BY5020
LCT RT5130

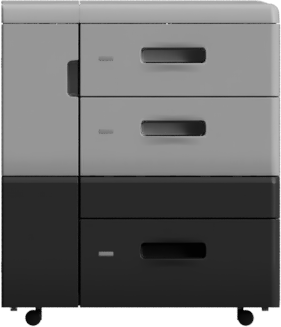

LCT RT5110

Optional Large Capacity Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.

Configuration: Console type
Capacity: 4,400 sheets
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 x 139.7–487.7 mm
Paper weight : 52.3–256 g/m2 (Trays 4 and 6); 52.3–360 g/m2(Tray 5)
Note: Some media over 301 g/m2 can be supported but the vacuum-feed LCT RT5120 is recommended for media heavier than 301 g/m2.
Air-assisted paper feed: Supported with all trays
Active tray indicator LED: Supported
Power source: From mainframe
Dimensions (W x D x H): 865 x 730 x 1,000 mm
Weight: 185 kg or less

Notes:
Cannot be installed with LCT RT5130,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
LCT RT5110

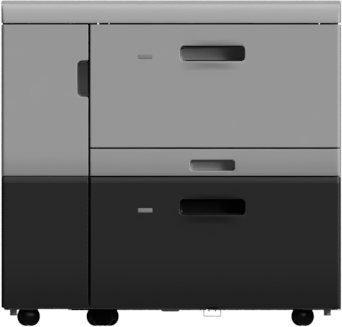

Vacuum-Feed LCT RT5120

Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy.

Capacity: 4,400 sheets (2 x 2,200 sheet trays); 2,200 sheets with Vacuum-Feed Banner Sheet Tray Type S9 attached
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 52–470 g/m²
Note: Supported paper weight depends on mainframe.
Paper transfer method: Air pick
Active tray indicator LED: Supported
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm with Vacuum-Feed Banner Sheet Tray Type S9 attached
Weight: 220 kg  or less; 227 kg or less with Vacuum-Feed Banner Sheet Tray Type S9 attached
Power source: 220–240 V
Power consumption: 1,000 W or less

Notes:
Cannot be installed with LCT RT5130
Vacuum Feed LCT RT5120
Vacuum-Feed Banner Sheet Tray Type S9

Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.

Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52–300 g/m²
Note: Supported paper weight depends on mainframe.
Power source: From LCT
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less

Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,LCT RT5130,LCT RT5110,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi-Bypass Tray BY5020

Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.

Capacity: 500 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Notes:
One of the following must also be selected: Vacuum-Feed LCT RT5120 and Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,LCT RT5110
Cannot be installed with LCT RT5130
Multi Bypass Tray BY5020
Multi-Bypass Banner Sheet Tray Type S9

Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.

Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.

Capacity: 500 sheets
Paper size: A5–A3, 13” x 19.2”
Custom size: 100–330.2 x 139.7–700 mm
Note: Simplex printing up to 1,260 mm supported when sheets are fed individually.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,LCT RT5130,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the Vacuum-Feed LCT RT5120,Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCT RT5130,LCT RT5110,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000
A3/11"x17" Tray Unit TK5020

Converts the standard paper input tray from a tandem A4 tray to an A3 tray.

Capacity: 1,000 sheets
Paper size: A4, A3, B4
Paper weight : 52.3–216 g/m2
Dimensions (W x D x H): 490 x 530 x 175 mm
Weight: 11 kg

ADF Double-feed Detection Kit Type S7
Detects double-feeding of scanned originals. Improves scanning speed to enhance the efficiency of high-volume scanning work essential to legal offices and educational institutes.
Decurl Unit DU5070

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.

Configuration: Optional internal module to be installed in the mainframe
Paper size: 100 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 40–350 g/m2
Decurler functions:
Pressure adjustment
3 steps—from operation panel
Curl type
Back curl, face curl—from operation panel
Dimensions (W x D x H) : 71 x 509 x 181 mm
Weight: 5 kg or less
Power source: From mainframe
Power consumption: 30 W or less

Shift Sort Tray SH5000

Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.

Line speed: 60–433 mm/s
Stack capacity: 1,250 sheets (A4, B5), 500 sheets (A3 SEF, A5 LEF, B4 SEF), 100 sheets (A5 SEF, B6 SEF, A6 SEF)
Paper size: A3~A5, B6 SEF, A6 SEF
Paper weight: 52–216 g/m(Quality guaranteed only for 60-105 g/m2)
Power source: From mainframe
Power consumption: 20 W
Dimensions (W x D x H): 400 x 600 x 480 mm
Weight: 11 kg or less

Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Finisher SR5090,Booklet Finisher SR5100,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Output Jogger Unit Type S11,Printer Controller EB-35
Shift Sort Tray SH5000

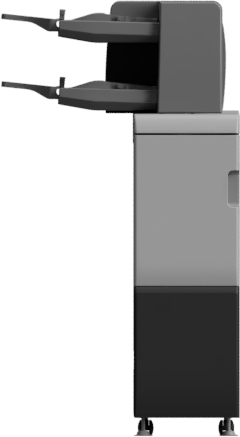

Cover Interposer Tray CI5040

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.

Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption

Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Cover Interposer Tray CI5040
Cover Interposer Tray Double-Feed Detection Kit Type S11

When attached to the cover interposer, detects double feeds from the interposer.

Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11

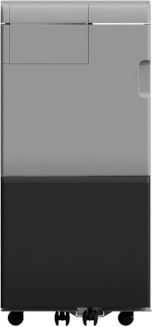

Multi-Folding Unit FD5020

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside
Multiple sheet mode (up to 3 sheets)
Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out
Note: Coated paper is also supported.

Paper size: A4—13" x 19.2"
Paper weight:
64–105 g/m2—single sheet mode
64–80 g/m2—multiple sheet mode

Power source: External, 220–240 V, 50–60 Hz
Power consumption: 240 W or less
Dimensions (W x D x H): 470 x 730 x 1,000 mm
Weight: 92 kg or less

Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi Folding Unit FD5020

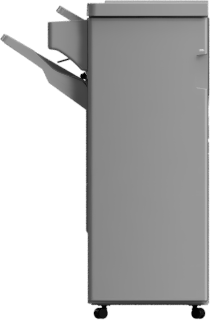

Finisher SR5090

Provides multi-position stapling and optional hole punching.

Capacity: 3,000 sheets
Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2"
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm with banner paper
Paper weight: 52–220 g/m2
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple position adjustment: Supported; two position staple only
Staple paper weight: 52–105 g/m2
Optional punch unit PU3090 available
Output jogger: Optional
Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed
Weight: 38 kg or less
Power consumption: 67 W

Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Booklet Finisher SR5100,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
Finisher SR5090

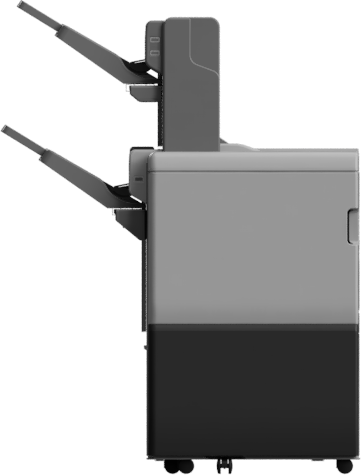

Finisher SR5110

Provides 100-sheet stapling and optional hole punching.

Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold

Paper weight:
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold
64–105 g/m2 —with Z-fold
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

Notes:
Cannot be installed with Booklet Finisher SR5120,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Trimmer Unit TR5050,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Finisher SR5110

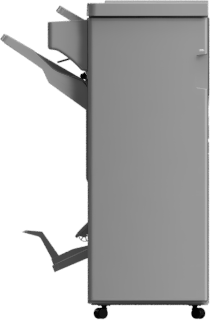

Booklet Finisher SR5100

Allows documents to be professionally finished as saddle-stitched booklets with minimal effort. Provides 65-sheet stapling and optional hole punching.

Capacity: 2,000 sheets
Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2"
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm for banner paper
Paper weight: 52–220 g/m2
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple position adjustment: Supported; two position staple only
Staple paper weight: 52–105 g/m2 (plain paper); 81.4–104.7 g/m2 (glossy/matte paper)
Saddle stitch staple: 20 sheets (80-page booklet)
Optional punch unit PU3090 available
Output jogger: Optional
Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed
Weight: 53 kg or less
Power consumption: 67 W

Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Finisher SR5090,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
Booklet Finisher SR5100

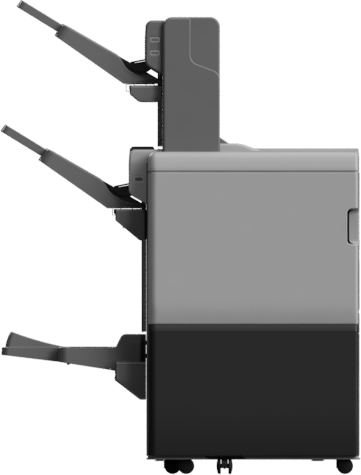

Booklet Finisher SR5120

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.

Capacity: 3,500 sheets (dual shift tray)

Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm

Paper weight:
Without Z-fold
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)
With Z-fold
64–105 g/m2
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W

Notes:
Cannot be installed with Finisher SR5110,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Booklet Finisher SR5120
Output Jogger Unit Type S11

A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.

Note: Supported paper specifications are determined by the attached mainframe.

Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2”
Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range
Weight: 2 kg or less
Power consumption: 15 W or less

Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Punch Unit PU5030 NA
Trimmer Unit TR5050

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.

Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5110,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Trimmer Unit TR5050
SR5000 Series Output Tray for Banner Sheet Type S6

Required for banner sheet output for selected Ricoh finishers and booklet finishers.

Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m2

Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11,Shift Sort Tray SH5000
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 NA

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.

Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.

Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 SC ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC

Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.

Number of punch: 4 holes
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU3090 NA

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
3-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3090 EU,Punch Unit PU3090 SC,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 EU

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
4-hole punch

B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 SC,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 SC

Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.

Paper size:
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 EU,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Printer Controller EB-35

An external printer controller that provides fast processing speed, outstanding image quality, and time-saving workflow.

Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
PostScript 3 Unit Type S11
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type S11
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type S11
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Media Identification Unit Type S3
Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
VM Card Type P18
Java Virtual Machine that supports the installation of embedded software applications.
Attention Light AL3000

Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe or finisher.

Dimensions (W x D x H) : 100 × 100 × 606 mm

Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

Standard inclusions

  • 17" operation panel
  • Up to 13" x 19.2" paper size
  • Up to 350 g/m2 paper
  • 700 mm banner paper
  • 640 GB HDD
  • No Carbon Required (NCR) paper duplex printing

Current configuration

Pro 8300S
1141 mm x900 mm x1500 mm (W x D x H)
428 kg
Selected Options:
    Pro 8300S

    {"configuratorid":"83ff1fe6-664b-4d5c-a92d-2673481f03df","productid":"fc14dd1b-a7f5-48d8-bc68-419abe1f3d00","edpcode":"409241","productdisplayname":"Pro 8300S","width":1141.0,"height":1500.0,"depth":900.0,"weight":428.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/commercial-and-industrial-printing-solutions/cut-sheet/pro-8300s-pro-8310-and-pro-8320-series/configurator/mainframe.png?dmc=0&hash=B1B97D722072C800EF22A357C8F0597C","configurator_hash":"d3a9608d-79eb-45d3-9848-9c81667e3b4c","options":{"409257":{"edpcode":"409257","displayname":"LCT RT5130","extras":[],"width":540.0,"height":1000.0,"depth":730.0,"weight":106.0,"show_image":true,"hide_until_required":false},"409117":{"edpcode":"409117","displayname":"LCT RT5110","extras":[],"width":865.0,"height":1000.0,"depth":730.0,"weight":185.0,"show_image":true,"hide_until_required":false},"409083":{"edpcode":"409083","displayname":"Vacuum-Feed LCT RT5120","extras":[1,2],"width":1054.0,"height":1000.0,"depth":730.0,"weight":220.0,"show_image":true,"hide_until_required":false},"404652":{"edpcode":"404652","displayname":"Bridge Unit BU5010","extras":[],"width":330.0,"height":1000.0,"depth":730.0,"weight":40.0,"show_image":true,"hide_until_required":true},"409095":{"edpcode":"409095","displayname":"Vacuum-Feed Banner Sheet Tray Type S9","extras":[],"width":236.0,"height":0.0,"depth":0.0,"weight":7.0,"show_image":false,"hide_until_required":false},"409090":{"edpcode":"409090","displayname":"Multi-Bypass Tray BY5020","extras":[],"width":690.0,"height":210.0,"depth":561.0,"weight":20.0,"show_image":true,"hide_until_required":false},"409099":{"edpcode":"409099","displayname":"Multi-Bypass Banner Sheet Tray Type S9","extras":[],"width":1090.0,"height":210.0,"depth":561.0,"weight":9.5,"show_image":false,"hide_until_required":false},"409096":{"edpcode":"409096","displayname":"Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409338":{"edpcode":"409338","displayname":"A3/11\"x17\" Tray Unit TK5020","extras":[],"width":490.0,"height":175.0,"depth":530.0,"weight":11.0,"show_image":false,"hide_until_required":false},"409000":{"edpcode":"409000","displayname":"ADF Double-feed Detection Kit Type S7","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409337":{"edpcode":"409337","displayname":"Decurl Unit DU5070","extras":[],"width":71.0,"height":181.0,"depth":509.0,"weight":5.0,"show_image":false,"hide_until_required":false},"409253":{"edpcode":"409253","displayname":"Shift Sort Tray SH5000","extras":[],"width":400.0,"height":480.0,"depth":600.0,"weight":11.0,"show_image":true,"hide_until_required":false},"409258":{"edpcode":"409258","displayname":"Cover Interposer Tray CI5040","extras":[],"width":330.0,"height":1350.0,"depth":730.0,"weight":60.0,"show_image":true,"hide_until_required":false},"409259":{"edpcode":"409259","displayname":"Cover Interposer Tray Double-Feed Detection Kit Type S11","extras":[],"width":126.0,"height":56.0,"depth":317.0,"weight":0.4,"show_image":false,"hide_until_required":false},"404541":{"edpcode":"404541","displayname":"Multi-Folding Unit FD5020","extras":[],"width":470.0,"height":1000.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"409235":{"edpcode":"409235","displayname":"Finisher SR5090","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":38.0,"show_image":true,"hide_until_required":false},"409251":{"edpcode":"409251","displayname":"Finisher SR5110","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":135.0,"show_image":true,"hide_until_required":false},"409234":{"edpcode":"409234","displayname":"Booklet Finisher SR5100","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":53.0,"show_image":true,"hide_until_required":false},"409252":{"edpcode":"409252","displayname":"Booklet Finisher SR5120","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":160.0,"show_image":true,"hide_until_required":false},"409426":{"edpcode":"409426","displayname":"Output Jogger Unit Type S11","extras":[],"width":169.0,"height":203.0,"depth":539.0,"weight":2.0,"show_image":false,"hide_until_required":false},"409255":{"edpcode":"409255","displayname":"Trimmer Unit TR5050","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"404877":{"edpcode":"404877","displayname":"SR5000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409268":{"edpcode":"409268","displayname":"Punch Unit PU5030 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409269":{"edpcode":"409269","displayname":"Punch Unit PU5030 EU ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409270":{"edpcode":"409270","displayname":"Punch Unit PU5030 SC ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418332":{"edpcode":"418332","displayname":"Punch Unit PU3090 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418333":{"edpcode":"418333","displayname":"Punch Unit PU3090 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418334":{"edpcode":"418334","displayname":"Punch Unit PU3090 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"409264":{"edpcode":"409264","displayname":"Printer Controller EB-35","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409328":{"edpcode":"409328","displayname":"PostScript 3 Unit Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409334":{"edpcode":"409334","displayname":"IPDS Unit Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409342":{"edpcode":"409342","displayname":"XPS Direct Print Option Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413010":{"edpcode":"413010","displayname":"Unicode Font Package for SAP 10 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404882":{"edpcode":"404882","displayname":"Media Identification Unit Type S3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418067":{"edpcode":"418067","displayname":"VM Card Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"407964":{"edpcode":"407964","displayname":"Attention Light AL3000","extras":[],"width":100.0,"height":606.0,"depth":100.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["409257"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409117","409083","409095","409099","409096","409090"],"should_validate_after_excute":false,"excludes":["409117","409083","409095","409099","409096","409090"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409117"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409257","409095","409096"],"should_validate_after_excute":false,"excludes":["409257","409095","409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409083"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409257"],"should_validate_after_excute":false,"excludes":["409257"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"BridgeOptionAction","affect_to_options":["404652"],"should_validate_after_excute":false,"bridge_option":"404652","base_option":"409083"}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409095"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","409257","409117","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","409257","409117","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409099"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409090"],"should_validate_after_excute":false,"requires":["409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","409257","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","409257","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409096"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083","409090"],"should_validate_after_excute":false,"requires":["409083","409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257","409117","418332","418333","418334","409426","409235","409234","409253"],"should_validate_after_excute":false,"excludes":["409257","409117","418332","418333","418334","409426","409235","409234","409253"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409253"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409235","409234","404541","409255","409258","409095","409099","409259","409268","409269","409270","418332","418333","418334","409096","404877","409426","409264"],"should_validate_after_excute":false,"excludes":["409251","409252","409235","409234","404541","409255","409258","409095","409099","409259","409268","409269","409270","418332","418333","418334","409096","404877","409426","409264"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409258"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409259"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409258"],"should_validate_after_excute":false,"requires":["409258"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404541"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409235"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409234","409253","404541","409255","409258","409095","409099","409259","409268","409269","409270","409096","404877","409264"],"should_validate_after_excute":false,"excludes":["409251","409252","409234","409253","404541","409255","409258","409095","409099","409259","409268","409269","409270","409096","404877","409264"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409251"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409252","409235","409234","409253","409255","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409252","409235","409234","409253","409255","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409234"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409235","409253","404541","409255","409258","409095","409099","409259","409268","409269","409270","409096","404877","409264"],"should_validate_after_excute":false,"excludes":["409251","409252","409235","409253","404541","409255","409258","409095","409099","409259","409268","409269","409270","409096","404877","409264"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409252"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409251","409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409426"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409253","404541","409255","409258","409095","409259","409269","409270","404877","409264","409099","409096","409268"],"should_validate_after_excute":false,"excludes":["409251","409252","409253","404541","409255","409258","409095","409259","409269","409270","404877","409264","409099","409096","409268"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409255"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409252"],"should_validate_after_excute":false,"requires":["409252"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409251","409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404877"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","418332","418333","418334","409426","409253"],"should_validate_after_excute":false,"excludes":["409235","409234","418332","418333","418334","409426","409253"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409269","409270","409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409269","409270","409235","409234","409253","418332","418333","418334","409426"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409269"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409268","409270","409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409268","409270","409235","409234","409253","418332","418333","418334","409426"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409270"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409268","409269","409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409268","409269","409235","409234","409253","418332","418333","418334","409426"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418332"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418333","418334","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"],"should_validate_after_excute":false,"excludes":["418333","418334","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418333"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418332","418334","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"],"should_validate_after_excute":false,"excludes":["418332","418334","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418334"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418332","418333","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"],"should_validate_after_excute":false,"excludes":["418332","418333","409251","409252","409095","409099","409096","409253","404541","409255","409258","409259","409268","409269","409270","404877","409264"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409264"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409253","418332","418333","418334","409426"],"should_validate_after_excute":false,"excludes":["409235","409234","409253","418332","418333","418334","409426"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409090","409083"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409090","409083"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409090"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"},{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"}]}]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409096"],"should_validate_after_excute":false,"requires":["409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409090"]},"actions":[{"action_name":"RequireOneExtendAction","affect_to_options":["409083","409096","409117"],"should_validate_after_excute":true,"must_select_one_options":[],"or_must_select_options":[["409083","409096"],["409117"]]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257"],"should_validate_after_excute":false,"excludes":["409257"]}]}],"affect_group":[["409257","409117","409083","409095","409099","409096","404652","409090","409235","409234","409253","418332","418333","418334","409426","409251","409252","404541","409255","409258","409259","409268","409269","409270","404877","409264"],["409338"],["409000"],["409337"],["409328"],["409334"],["409342"],["417430"],["413009"],["413010"],["417493"],["404882"],["418067"],["407964"],["417111"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
