M C2510

M C2510

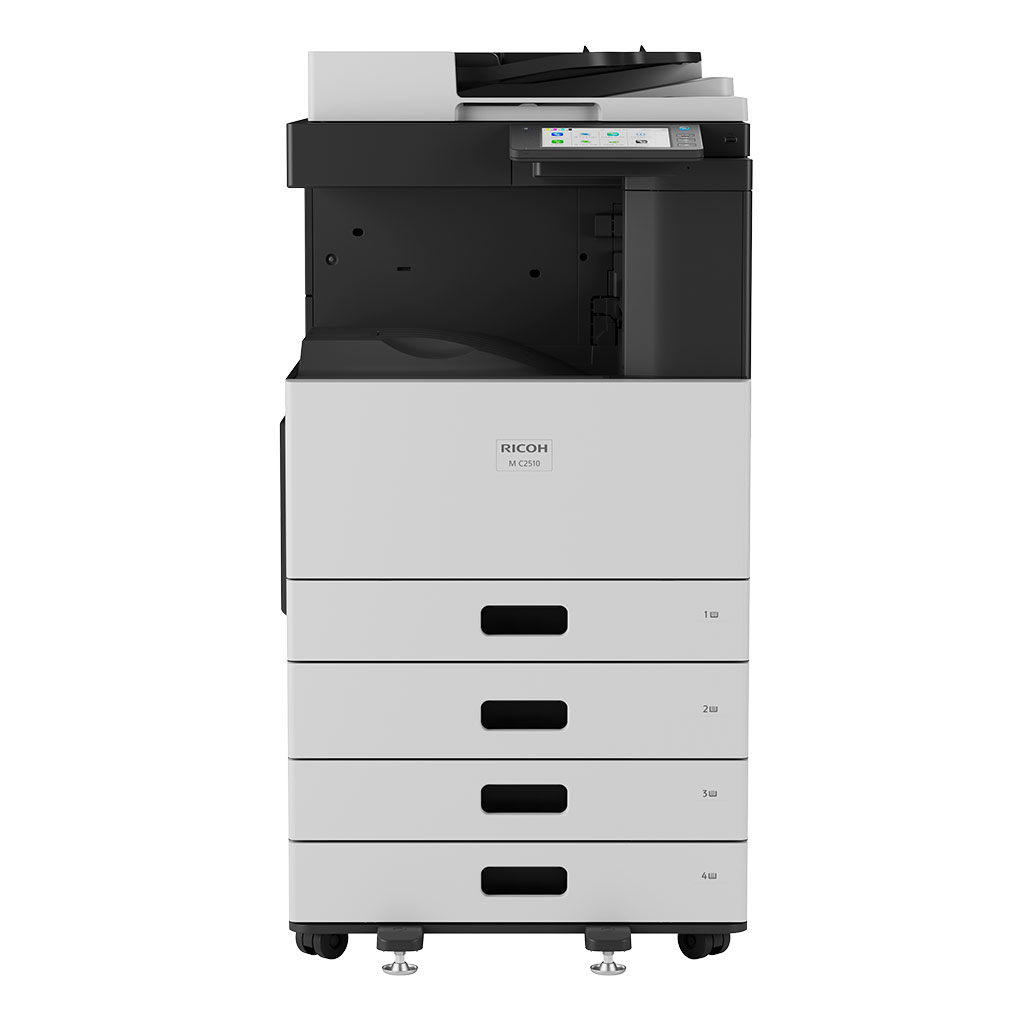

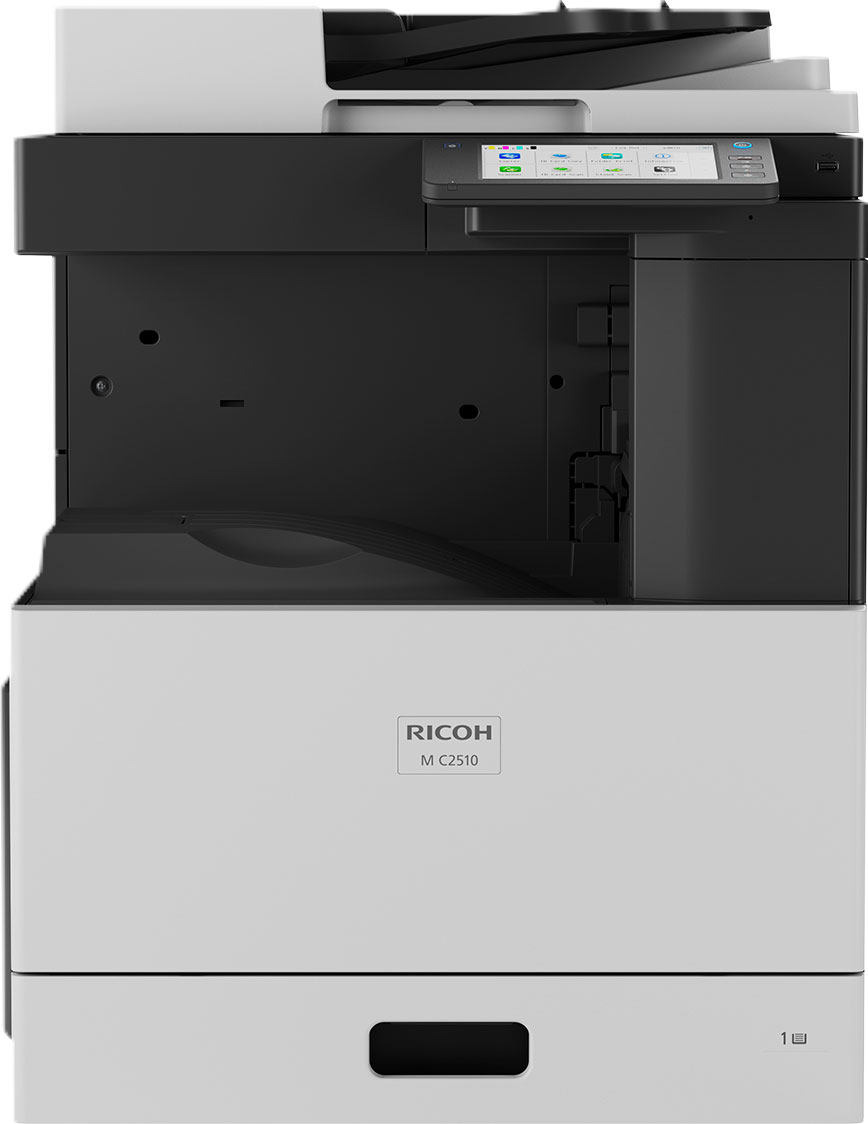

The M C2510 is an affordable A3 colour multifunction printer (MFP) built for businesses with everyday copying, printing, and scanning needs.

Featuring up to 25 ppm print speed, 50 ipm scan speed, 64GB eMMC storage, and an intuitive 7" touchscreen panel, it delivers the speed and simplicity teams need to stay productive.

Optional wireless connectivity and additional paper trays that support up to 2,900 sheets provide flexibility to meet different needs. Advanced security protocols and multi-factor authentication help protect access and sensitive data, while push scan to cloud and centralised device management software support make the M C2510 a smart, scalable choice for modern workplaces.

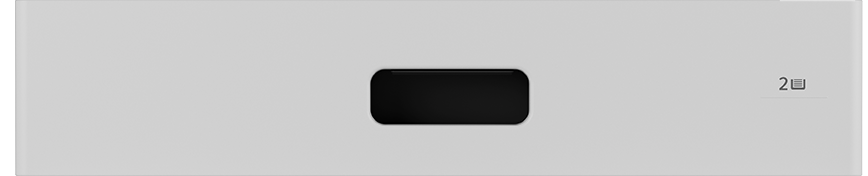

Paper Feed Unit PB3380
Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 550 sheets
Paper size: A5-R, A4, A4-R, A3, Folio, 8K, 16K, 16K-R, ST-R, LT, LT-R, LG, LD, Comp, 13” LG, 8.5” SQ
Paper weight: 60–163 g/m2
Dimensions (W x D x H): 575 x 685 x 163 mm
Weight: 9.7 kg
Power consumption: 6 W
PB3380-Front-v3

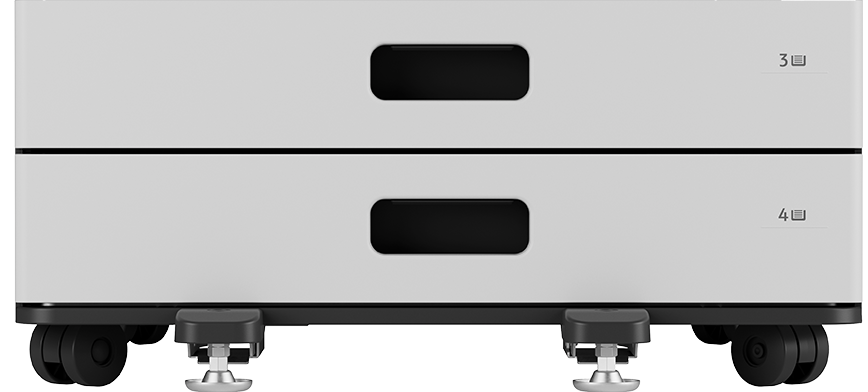

Paper Feed Unit PB3390
Optional 2-tray paper feed unit that increases the paper capacity of the device.

Capacity: 1,100 (2 x 550) sheets
Paper size—Tray 3: A5-R, A4, A4-R, A3, Folio, 8K, 16K, 16K-R, 320 x 460 mm, SRA3 (320 x 450 mm), 305 x 357 mm / 12" x 18", ST-R, LT, LT-R, LG, LD, Comp, 13” LG, 8.5” SQ
Paper size—Tray 4: A5-R, A4, A4-R, A3, Folio, 8K, 16K, 16K-R, ST-R, LT, LT-R, LG, LD, Comp, 13” LG, 8.5” SQ
Paper weight: 60–160 g/m2
Dimensions (W x D x H): 668 x 701 x 292 mm—including stabiliser
Weight: 25.5 kg
Power consumption: 54 W
Notes:
By choosing this option the Paper Feed Unit PB3380 will be added to the configuration.
Cannot be installed with Paper Feed Unit PB3400
PB3390-Front-v3

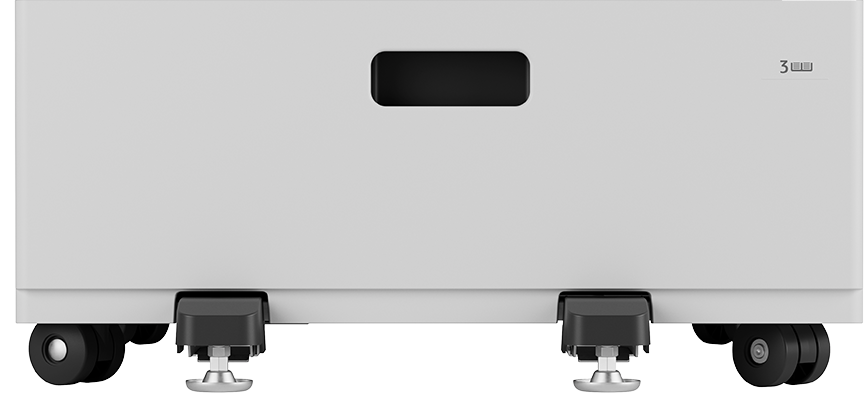

Paper Feed Unit PB3400
Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 2,000 sheets
Paper size: A4, LT
Paper weight: 64–300 g/m2
Dimensions (W x D x H): 660 x 716 x 380—including stabiliser
Weight: 25 kg
Power consumption: 30 W
Notes:
By choosing this option the Paper Feed Unit PB3380 will be added to the configuration.
Cannot be installed with Paper Feed Unit PB3390
PB3400-Front-v3
IEEE 802.11 Interface Unit Type M47
Enables WiFi connectivity and wireless printing.
423994 NFC Card Reader Option Type M66
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology.

Standard inclusions

  • 7" touchscreen panel
  • 50-sheet ARDF
  • 250-sheet input tray
  • 100-sheet bypass tray
  • 550-sheet output tray
  • eMMC 64 GB

Current configuration

M C2510
585 mm x670 mm x752 mm (W x D x H)
63.6 kg
Selected Options:
    M C2510
