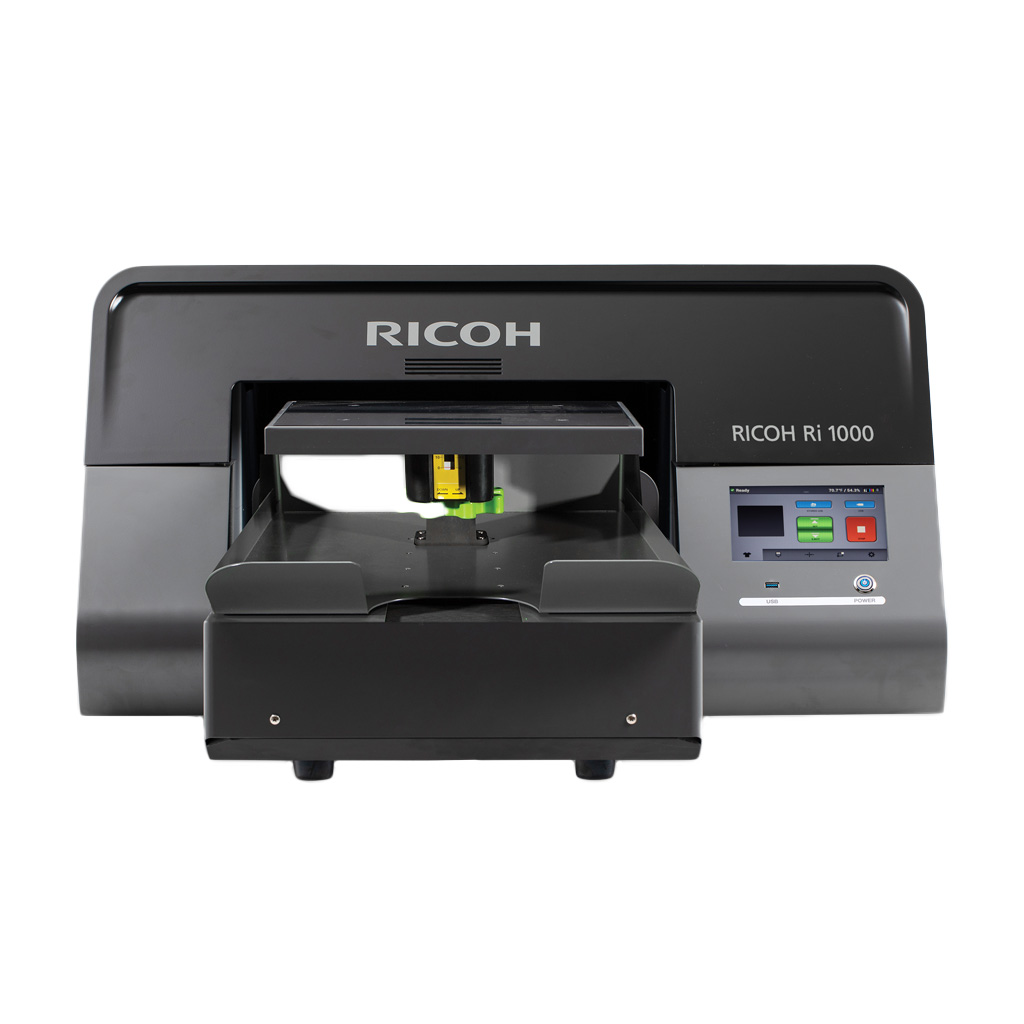

RICOH Ri 1000

Direct to Garment printer

  • 1,200 x 1,200 dpi
  • 7-inch touchscreen panel
  • Supports white ink
  • Optional platens

High performance with impressive print speed

RICOH Ri 1000 provides the perfect combination of smart technology, fast print speeds, and high output quality, enabling customers to expand their garment decoration portfolio. Versatile and productive, it uses Ricoh’s variable drop size inkjet technology and CMYK + white pigment inks to print high resolution graphics onto light and dark coloured fabrics. It supports cotton and polyester and can be used to personalise T-shirts, tote bags and other merchandise.

  1. High quality output
    The industrial-grade printheads used are durable and robust, providing accurate and consistent prints on every application
  2. Excellent productivity
    Automatically detects the thickness of the garment, ensuring the table height is set precisely each time to save time and increase productivity
  3. Easy to use and maintain
    Maintenance functions such as intelligent auto clean, white ink agitation, and continuous monitoring of ink supply and air levels are all automated
  4. Quick-change platens and a range of size options
    Available in multiple styles and offer the flexibility to print in sizes up to 406 x 508 mm
Download PDF brochure

Specifications

Functions
Garment print
Colour
Yes
CPU
2.0 GHz or faster
Memory - standard
2 GB or more
Operation panel
7" touch screen display
Device configuration
Desktop
Physical dimensions (WxDxH)—mainframe
862 x 1,325 x 480 mm
Physical dimensions (WxDxH)—other
49.8 x 40.6 x 3.3 cm— RICOH Large Platen Type G1
45.7 x 32.0 x 3.3 cm— RICOH Medium Platen Type G1
33.0 x 26.6 x 3.3 cm— RICOH Small Platen Type G1
Weight—mainframe
110 kg
Weight—other
4.1 kg— RICOH Large Platen Type G1
3.2 kg— RICOH Medium Platen Type G1
2.3 kg— RICOH Small Platen Type G1
Minimum space requirements
200 mm—front
50 mm—left
500 mm—right (ink slot side)
50 mm—rear
Average monthly volume
375 prints per month
Max monthly volume
2,000 prints per month
Machine life
30,000 prints or 5 years whichever comes first
Duty cycle
30,000 prints
PM cycle
1.5–2 years/10,000 prints
Mean Copies Between Calls (MCBC)
1,899 prints
Maintenance

Maximum 60 minutes maintenance time/1 person

Supply yields

Ink cartridge yield—standard
1,088 pages—CMYK
84 pages—W1,W2

Ink cartridge yield—high yield
2,724 pages—CMYK
208 pages—W1,W2

Ink cartridge capacity
200 ml—standard
500 ml—high yield

Cleaning cartridge capacity
200 ml

Waste ink bottle
300 pages

Garment handling

Substrates
Cotton, blend ratio 50–100%

Applications
T-shirt, tote bag, sweatshirt, polo shirt, hat, towel, handkerchief, bib

Garment thickness
30 mm max—without frame
4 mm max—with frame

Garment thickness sensor
Available

Garment types
Standard
Spectra USA, Spectra T-shirt 3100–148 g/m2

Recommended
Toms/heavy-weight T-shirt 00085-CVT—190 g/m2
Toms/tote bag—404 g/m2
Toms/tote bag—270 g/m2
Toms/tote bag—135 g/m2

Platen type
Dress

Platen sizes
406.4 x 508 mm/16” x 20”—large
320 x 457.2 mm/12.6” x 18”—medium
266.7 x 330.2 mm/10.5” x 13”—small

Table height adjustment
0–30 mm manual adjustment
3 mm/360º adjustment pitch
1.5 kg maximum load

Print speed colour

4-Colour (4C)
95 seconds—standard mode
155 seconds—high image quality mode
60 seconds—high speed mode

4C+ White
205 seconds—standard mode
260 seconds—high image quality mode
140 seconds—high speed mode

Note: Print speeds based on 10"x8" at 25º C through the entire process—push start button, table moves forward, ink purged, printing, table moves back.

Printing technology
Inkjet
Ink type
Water-based garment ink
Ink configuration
CMYKWW
Printhead
4 Ricoh Piezo ink heads
192 nozzles in 8 lines
6 colours
Print resolution
Standard Mode (4C)—600 x 600 dpi / 8-pass
High Image Quality Mode (4C)—600 x 600 dpi / 4-pass
High Speed Mode (W)—600 x 1,200 dpi / 8-pass
Maximum printable area
406.4 x 508 mm—bed max
Other print features

Pre-treatment
PowerBright Pre-treatment Liquid (P5002)

Post-treatment
Heat press
100 seconds/180oC—4-colour
90 seconds/165oC—4-colour + white

Standard
AnaRIP
Power source
100–120 V/200–240 V, 50–60 Hz (±3 Hz)
Power consumption
20 W—standby
100 W—maximum, operating
Sound power level
40 dB—standby
67 dB—operating
Environmental standards
Ricoh GPP
RoHS
REACH
Directive 94/62/EC
Directive 2006/66/EC
WEEE
Safety standards
IEC62368-1
IEC60950-1
Low Voltage Directive EN62368-1
Ricoh Product Safety Standards
Electromagnetic Compatibility (EMC) standards
EN 55032 Class A
EN 55024
EN 61000-3-2, EN 61000-3-3
EN 62311
AS/NZS CISPR 32
Operating environment

Temperature—guaranteed
15–32º C

Temperature—recommended
10–25º C

Humidity—guaranteed
45–80% RH

Humidity—recommended
45–70% RH
