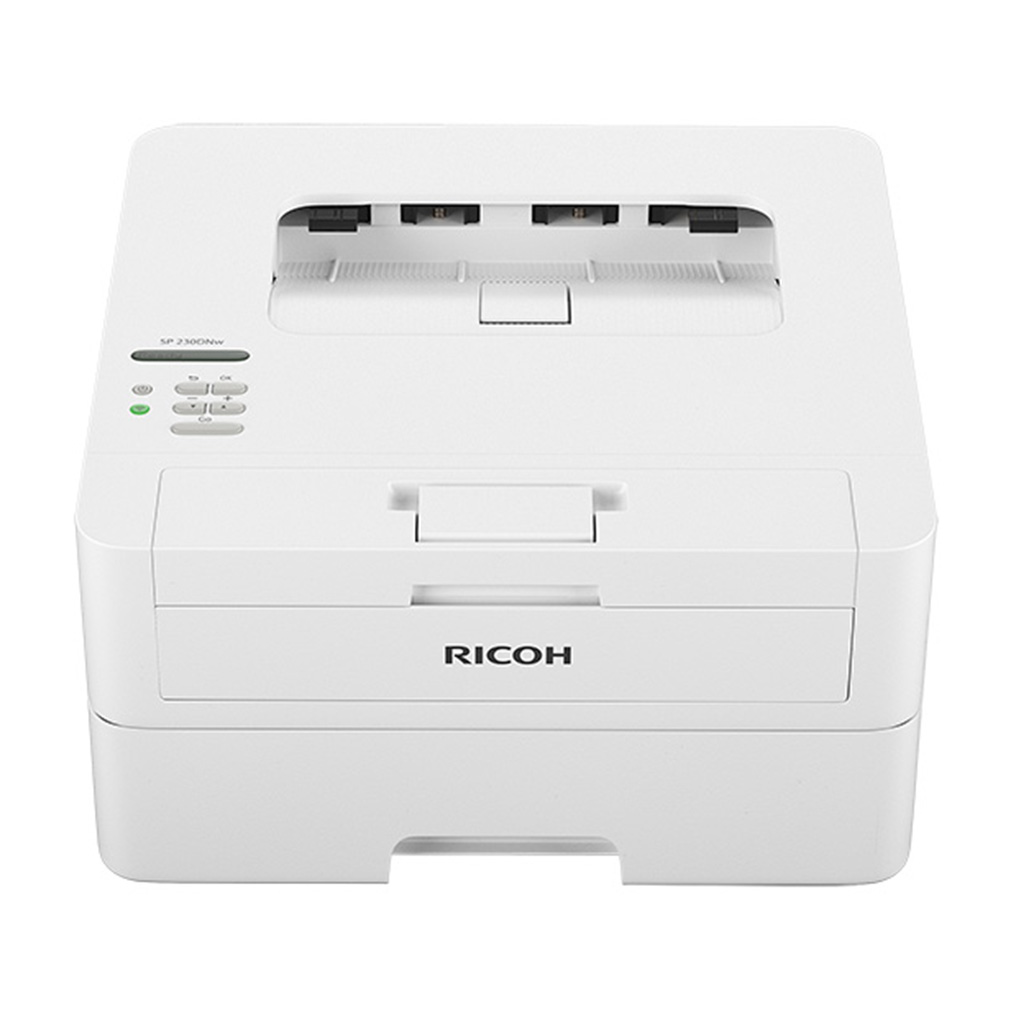

SP 230DNw A4 black and white printer

  • Prints up to 30 ppm
  • 1,200 x 1,200 dpi
  • Mobile printing
  • Quiet operation

A compact workhorse for the busy workplace

The SP 230DNw makes printing simple - with easy set-up, a high capacity paper tray, wireless connectivity and a print speed of 30ppm. And you can work in an environment that suits you. The SP 230DNw’s compact size is perfect for smaller office spaces. Thanks to its low noise levels you can stay fully focused on the task in hand and get even more work done in less time. Complete with a separate toner and high capacity drum, you can also reduce overheads.

  1. Compact and Robust
    Compact in size and provide quiet operation, leading to greater efficiency and user productivity especially in smaller office environments
  2. Excellent productivity
    High-quality 1,200 x 1,200 dpi resolution
  3. Easy to use
    Easy mobile printing via Wi-Fi Direct, Mopria®, and AirPrint® support
  4. Economical and eco-friendly
    Low Typical Electricity Consumption (TEC) and Energy Star v2.0 certified
Download PDF brochure

Specifications

Functions
Print
Memory - standard
128 MB
Operation panel
1-line LCD
Physical dimensions (WxDxH)—mainframe
356 x 360 x 183 mm
Weight—mainframe
7.3 kg or less
Standard input capacity (sheets)
251
Maximum input capacity (sheets)
251
Standard output capacity (sheets)
150
Maximum output capacity (sheets)
150
Supported media
Thin paper, plain paper, thick paper, thicker paper, recycled, bond paper, label, envelope
Maximum paper size
A4
Media weight (g/m2)
60–230
Interfaces - standard
USB 2.0
10Base-T/100Base-Tx (Ethernet)
IEEE 802.11b/g/n (Wireless LAN)
Network protocols - standard
TCP/IP, IPv4
Print speed black and white
30 ppm—single-sided
7.5 ppm—duplex
First print time
8.5 seconds or less—from Ready Mode, 17.5 seconds or less—from Sleep Mode
Printing process
Single laser beam scanning and electrophotographic printing
Print resolution
600 x 600 dpi—default, 300 x 300 dpi, 1,200 x 1,200 dpi, 2,400 x 600 dpi
Printer drivers
GDI
Duplex printing
Yes
Mobile printing
Yes
Encryption
SNMP v3, Encrypted PDF Mode, Wireless LAN—WEP, WPA, WPA2
Windows
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
WIndows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh
OS X Native—10.11 or later
Other supported environments

Linux

Red Hat Linux—Enterprise 7 64-bit
Fedora—24 32-bit, 25 64-bit
Mageia—Mageia 5
Ubuntu—17.04, 17.10 64-bit, 14.04 64-bit
Open SUSE—13.2 32-bit, 42.2 64-bit
SUSE Enterprise—12.2 64-bit
Debian—8.3.0
LinuxMint—18

Power source
220–240 V, 50/60 Hz, 4.6 Amps or less
Power consumption
1,104 W—maximum power
460 W—operating power
42 W or less—Ready Mode
6 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
1,180 Wh
Warm-up time
28 seconds or less
Power saving mode

1 minute default shift time—Energy Saver Mode (Sleep Mode)

Recovery time

From Energy Saver Mode (Sleep Mode)
11 seconds or less

Energy saving standards
Energy Star v2.0
Green labels
Blue Angel Mark (BAM)
Safety standards
EN 60950-1 2006+A11:2009+A1:2010+A12:2011+A2:2013
Identification of plastic components
All plastic components are identified in accordance with ISO 11469 standards
