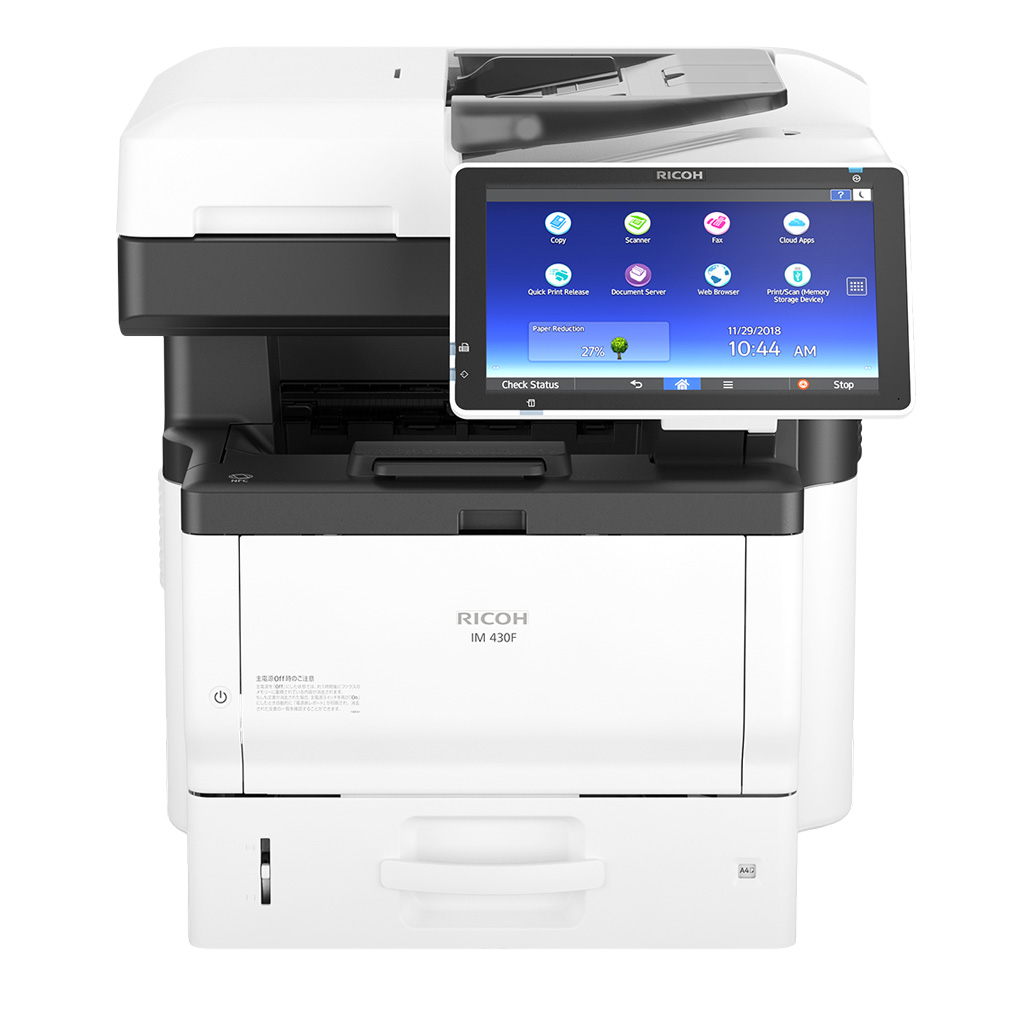

IM 430F A4 black and white MFP
- Copy, print, scan, fax
- Prints up to 43 ppm
- 10.1-inch Smart Operation Panel
- RICOH Smart Integration workflows
Handle the biggest challenges from the desktop with the compact RICOH IM 430F Black and White Multifunction Printer. Add additional paper trays to expand paper capacity and increase productivity whilst printing on a wide range of stocks including envelopes and labels. There is even an optional offline stapler to organise document sets quickly.
Account for your data and employees
Add user authentication with the optional Near Field Communications Card Reader and restrict access to critical information and controls to only authorised users. Use Locked Print for secure release of printed documents. The built-in Hard Disk Drive offers embedded encryption for transmitted data and the DataOverwrite Security System deletes latent images left on the hard drive.
Share in the cloud
Customise document management workflows using cloud connectivity. With the embedded web browser, you can grab information online and from cloud-based storage and service sites. Plus, use optional RICOH Smart Integration Workflows to automate how you print and share it.
- Place personalisation at your fingertips
Perform everyday tasks with speed and precision via the large 10.1” LCD touch screen - Go digital where it needs to be
Digitise documents with the Single Pass Document Feeder and scan up to 80 duplex images per minute (ipm) - Discover mobile convenience
Use RICOH Smart Device Connector app to scan originals at the device and send them to your personal device - Do more, conserve more
Designed to be quieter and more eco-friendly, the IM 430F achieves Typical Electricity Consumption of 1.8kWh/week
Specifications
- Functions
- Copy, print, scan, fax
- HDD
- 320 GB
- Memory - standard
- 2 GB
- Operation panel
- 10.1-inch tilting colour Smart Operation Panel
- Physical dimensions (WxDxH)—mainframe
- 476 x 442 x 510 mm
- Physical dimensions (WxDxH)—other
- 614 x 508 x 949 mm—mainframe with 4 trays, offline stapler, and caster table
370 x 392 x 95 mm—250-sheet paper bank PB1110
370 x 392 x 124 mm—500-sheet paper bank PB1120 - Weight—mainframe
- 30.5 kg
- Weight—other
- 4.8 kg—250-sheet paper bank PB1110
5.5 kg—500-sheet paper bank PB1120
- Standard input capacity (sheets)
- 600
- Maximum input capacity (sheets)
- 2,100
- Standard output capacity (sheets)
- 250
- Maximum output capacity (sheets)
- 250
- Supported media
- Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
- Paper thickness
- 52–65 g/m2—thin paper
66–74 g/m2—plain paper 1
75–90 g/m2—plain paper 2
91–105 g/m2—middle thick
106–130 g/m2—thick paper 1
131–162 g/m2—thick paper 2
163–256 g/m2—thick paper 3 - Maximum paper size
- A4
- Media weight (g/m2)
- 52–256
- Interfaces - standard
Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB Host 2.0Smart operation panel
SD card slot
USB Host Type A—USB Flash memory
USB Host Type A—camera
USB Host Type mini B—for NFC card reader- Interfaces - optional
- One of these can be installed:
USB Device Server (additional Ethernet/Gigabit Ethernet port)
IEEE 802.11a/b/g/n (Wireless LAN)
IEEE 1284
Extended USB board
File format converter - Network protocols - standard
- TCP/IP (IPv4, IPv6)
- Copy speed
Single document, multiple copies
43 cpm—via platen
40 cpm—via SPDFMultiple documents, single copy
37 cpm—via SPDF- First copy time
- 5.9 seconds or less—A4 SEF, via platen
6.5 seconds or less—A4 SEF, via SPDF - Copy resolution
- 600 x 600 dpi—platen
600 x 300 dpi—SPDF, 200%
600 x 600 dpi—SPDF, 201% - Greyscale
- 256 levels
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 141%, 200%
- Reduction ratios
- 93%, 71%, 50%
- Copy modes
- Text, Text/Photo, Photo, Copied; default
Auto text and photo separation (printed, glossy, copied) - Duplex copy
- Simplex to duplex, duplex to duplex, book to duplex, front and back to duplex
- Book copy
- Booklet, magazine, layout and booklet
- ID card copy
- Supported
- Print speed black and white
- 43 ppm—A4 LEF, simplex
37 ppm—A4 LEF, duplex - First print time
- 4.5 seconds or less
- Printing process
- Dry, single-component electrophotographic printing with LED
- Print resolution
- 1,200 x 1,200 dpi
- Page description languages (PDLs)
Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulationOptional
Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS- Printer drivers
- PCL 5e, PCL 6, PostScript 3
- Duplex printing
- Standard
- Mobile printing
- Yes
- Print from USB/SD
- Supported
- Maximum printable area
- 211.3 x 356 mm
- Scan speed
A4 SEF, via SPDF, 200 dpi, black and white 1-bit, MMR compression
40 ipm or faster—simplex
80 ipm or faster—duplexA4, via SPDF, 200 dpi, 300 dpi
43.4 ipm- Scan methods
Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to searchable PDF (embedded), Scan to digitally signed PDF
- Scan resolution
- 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi
- Scan to file types
- Single-and multi-page TIFF
Single page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF - Scan to file type support
Single-and multi-page TIFF
Black and white 1-bit—MH, MR, MMR, compression on
Compression off—yesSingle-page JPEG
Greyscale or full colour—JPEG, compression onSingle- and multi-page PDF
Black and white 1-bit—MH, MR, MMR, JBIG2, compression on
Greyscale or full colour—JPEG, compression on
Black and white 1-bit, greyscale, full colour—compression offSingle- and multi-page PDF/A
Black and white 1-bit—MH, MR, MMR, JBIG2, compression on
Greyscale or full colour—JPEG, compression on
Compression off—yesSingle- and multi-page high compression PDF
Greyscale or full colour JPEG—compression on
Compression off—yes- Scan to email
- Protocols
SMTP gateway, TCP/IP
Authentication
SMTP authentication, POP before SMTP authentication
Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi
Scan to email file types
Single-page
TIFF, JPEG, PDF
Multi-page
TIFF, PDF - Scan to email—other features
Scan to email size
With restriction—128–102,400 KB
Without restriction—725 MBMaximum email addresses per send
From HDD—500
Direct input—100
Via LDAP—100Email addresses stored in HDD
Maximum email addresses—2,000
Maximum group addresses—100 groups, 500 address per group
Maintain email addresses—2,000Search method
By name and email addressBody message
Manual input
User pre-registered
Preset message
Input subject
Manual input
User pre-registered
Preset messageInput file name
SupportedLDAP search
SupportedSimultaneous transmission
132 maximum destinationsAttention
To, cc, bccProgram user settings
SupportedDivide and send
Divide by page or size; default divide by sizeNote: If the sent file is larger than the email size restriction, it will be divided into multiple sends. The size restrictions of the email recipient may also impact the send.
Resend
Yes—maximum 3 attempts / No; default YesMaximum addresses per send when combined with Scan to folder
Via address book
500—selectable addresses or input
500—addresses allowed in a single operation
550—combination of addressesManual input
100—selectable addresses or input
500—addresses allowed in a single operation
550—combination of addresses- Scan to folder
Protocols
SMB, FTPSecurity
Client folder logon, encryption of logon name and password during transmissionScan resolution
100 pi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpiSearch for client folders
SMB—browsing directly to the designated folderScan to folder file types
Single- and multi-page
TIFF, PDF, high-compression PDF, PDF/A, encrypted PDF, searchable PDFOthers
JPEG, BMP, PNG, XPS- Scan to folder—other features
Client folder addresses stored in HDD
Maximum registered folder addresses—2,000Maintain folder addresses
Via operation panel, SmartDeviceMonitor for Admin, Web Image MonitorDestination folder address input via operation panel
SMB—Network path>Client folder>Password
FTP—Server>Network path>User account>PasswordHomefolder over LDAP
SupportedMaximum client folders/PCs per send
50 foldersSimultaneous transmission
500 maximum destinationsMaximum group addresses
100 destinations—32 to folder, 100 to emailInput file name
SupportedInsert subject
SupportedScan to file size
Default
2,000 MBWhen combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restrictionNote: File size depends on the selected Scan to email file size restriction.
Program registration
Up to 25 programsResend
Yes—maximum 3 attempts, No; default YesMaximum addresses per send when combined with Scan to email
Via address book
50—selectable addresses or input
50—addresses allowed in a single operation
550—combination of addressesManual input
50—selectable addresses or input
50—addresses allowed in a single operation
550—combination of addresses- TWAIN scanning
Scan mode
Standard, Photo, OCR, FilingScan resolution
Black and white
100–1,200 dpiColour
100–600 dpi- TWAIN scanning—other features
Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half-tone PatternEndorse
Date, Page number, TextStamp originals
SupportedSupported operating systems
Windows 7, Windows 8.1, Windows 10, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
- Fax types
- G3 fax, Internet fax, IP fax, LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 1 line
- Fax scanning speed
- 28 spm
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- 200 x 100 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm - G3 fax transmission speed
100 x 200 dpi
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission- Page memory size
- 4 MB—approximately 320 pages
- Fax SAF memory capacity
- 4 MB—approximately 320 pages
- Quick dials
- 2,000 numbers
- DataOverwriteSecurity System (DOSS) – Standard
- Yes
- DataOverwriteSecurity System (DOSS) – Optional
- Type M19—available to customers who require a Common Criteria certified DOS function before the mainframe obtains it
- Encryption
- HDD, PDF, Secure print encryption
Authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME) - Authentication
- User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support
- Windows
- Windows 7
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016 - Macintosh
- OS X Native v10.10 or later—PostScript 3 only
- Unix
- Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2 - SAP
- Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and above), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Input/output bin, Duplex, Resolution, Collation, EconoMode/Toner saving, Page protect, Auto tray change/Opt tray select ,User authentication
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B
- Standard
- @Remote Embedded
Web Image Monitor - Optional
- RICOH Streamline NX v2 and v3
GlobalScan NX
RICOH Scan CX
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
Device Manager NX Pro and Enterprise
RICOH @Remote Connector NX - Mobile apps
- Smart Device Connector
- Power source
- 220–240 V, 7 Amps, 50/60 Hz—Asia Pacific
110 V, 12 Amps, 60 Hz—Taiwan - Power consumption
- 1,290 W or less—maximum power, guaranteed
625 W—printing, nominal
91.5 W—Ready Mode, nominal
0.79 W—Energy Saver Mode (Sleep Mode), nominal - Typical Electricity Consumption (TEC)
- 1.8 kWh
- Warm-up time
- 22 seconds or less—Quick Mode
49.3 seconds or less—Without Quick Mode - Power saving mode
- 1 minute; default shift time—Energy Saver Mode (Sleep Mode)
- Recovery time
- 10 seconds or less—Energy Saver Mode (Sleep Mode)
- Energy saving standards
- Energy Star
- Green labels
- Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM)
- Safety standards
- EN 60950-1:2006+A11
EN 60950-1:2009+A1
EN 60950-1:2010+A12
EN 60950-1:2011+A2
EN 60950-1:2013 - Identification of plastic components
- All plastic components are identified in accordance with ISO 11469 standards.
