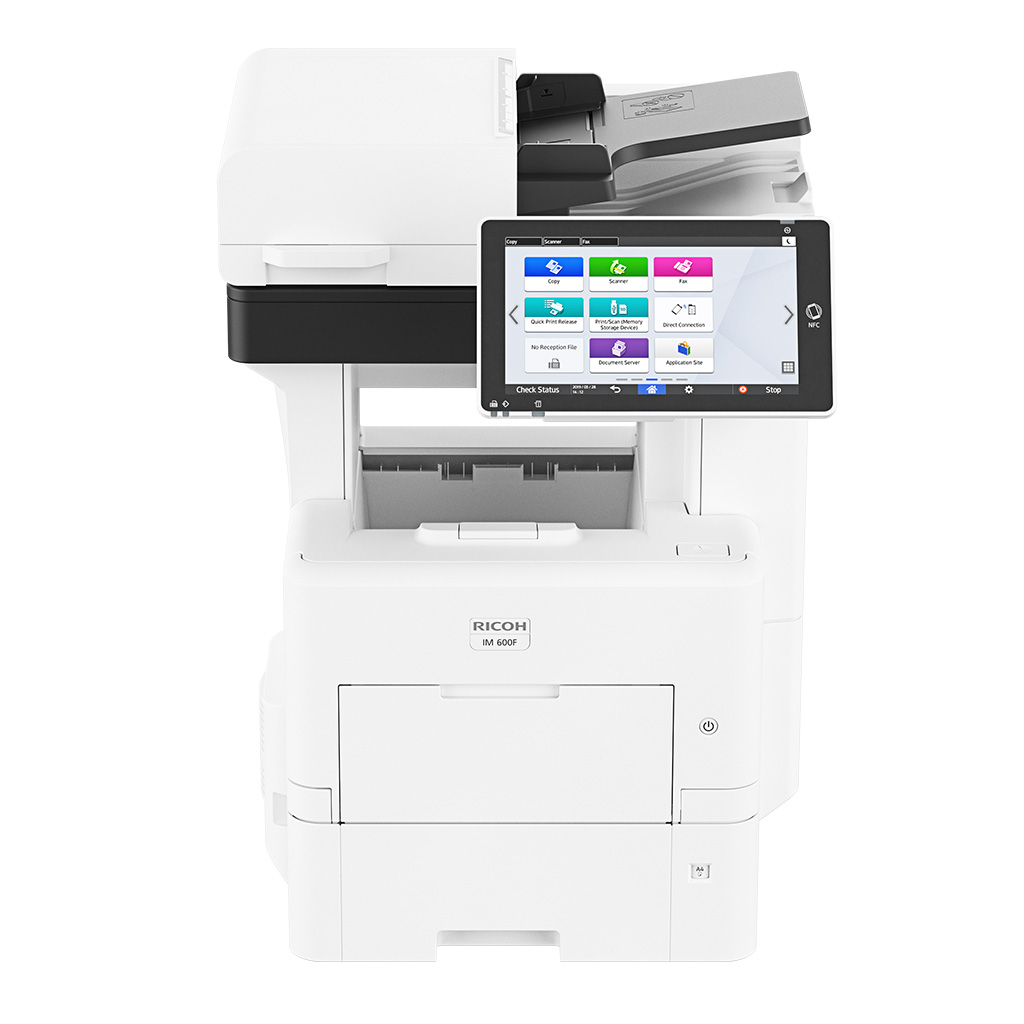

IM 600F A4 black and white MFP

Copy, print, scan, fax
Prints up to 60 ppm
10.1” Smart Operation Panel
RICOH Smart Integration

Configure your device here

The Apex Series - Ensuring performance when it matters

RICOH IM 600F performs in the most demanding work environments. Fast first prints with 1,200 dpi are ready within 6 seconds, with multipage print jobs being delivered at a blistering speed of 60 ppm. The Single Pass Document Feeder (SPDF) is equipped with a built-in page keeper, that prevents misfeed/double feeding when scanning in large volumes. Comes packed with Ricoh’s Always Current Technology™, new features and applications can be downloaded when required.

Improved productivity
100-sheet SPDF to handle large scanning jobs much faster and efficiently
Smart and scalable
RICOH Always Current Technology ensures devices support the latest features and functionalities
Reliable and durable
High duty cycle of up to 275,000 sheets
Intuitive experience
Applications and functions are seamlessly integrated, with an easy-to-understand interface

Download PDF brochure

Specifications

Functions: Copy, print, scan, fax
HDD: 320 GB, 2.5-inch
Memory - standard: 2 GB
Operation panel: 10.1" Smart Operation Panel (G2.5)

Physical dimensions (WxDxH)—mainframe: 480 x 539 x 644 mm
Physical dimensions (WxDxH)—other: 380 x 410 x 121 mm—Paper Feed Unit PB1160
778 x 808 x 64 mm—Caster Table Type M40 with anti-tipper
380 x 410 x 64 mm—Caster Table Type M40 without anti-tipper
Weight—mainframe: 29 kg or less
Weight—other: 4 kg or less—Paper Feed Unit PB1160
11 kg or less—Caster Table Type M40

Standard input capacity (sheets): 600
Maximum input capacity (sheets): 2,600
Standard output capacity (sheets): 500
Maximum output capacity (sheets): 500
Supported media: Standard tray, duplex unit
Plain Paper 1–2, Middle Thick Paper, Thick Paper 1¹, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper

Bypass tray
Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope

Paper Feed Unit PB1160
Plain Paper 1–2, Middle Thick Paper, Thick Paper 1¹, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope

¹—Allowed weights for Trays 1–5 and duplex printing are 106–120 g/m²
Paper thickness: 60–63 g/m²—Thin Paper
64–74 g/m²—Plain Paper 1
75–90 g/m²—Plain Paper 2
91–105 g/m²—Middle Thick Paper
106–135 g/m²—Thick Paper 1
136–170 g/m²—Thick Paper 2
171–220 g/m²—Thick Paper 3, Envelopes
Maximum paper size: A4
Media weight (g/m2): 60–220

Interfaces - standard

Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Host
USB Device 2.0

Operation panel
Wireless LAN (IEEE 802.11 ac/a/b/g/n)
SD Card Slot (1 slot/support SDHC Memory Card)
USB Host for USB Memory (USB Host Type A)
USB Host for IC Card R/W (NFC) (USB Host Type miniB)
NFC Tag built-in
Bluetooth

Interfaces - optional

IEEE 1284
Wireless LAN (IEEE 802.11a/b/g/n)
Device Server Type M37 (additional NIC port)

Network protocols - standard

TCP/IP (IPv4, IPv6)

Copy speed

60 cpm

First copy time

7 seconds or less

Copy resolution

Platen
600 x 600 dpi

SPDF—simplex
600 x 300 dpi
600 x 600 dpi

SPDF—duplex
Front 600 x 600 dpi / Back 600 x 600 dpi (colour, black and white)
Front 600 x 300 dpi / Back 600 x 300 dpi (black and white)
Front 600 x 300 dpi / 300 x 600 dpi (colour)

Greyscale

256 levels

Zoom range

25%–400% in 1% steps

Enlargement ratios

141%, 200%

Reduction ratios

93%, 71%, 50%

Copy modes

Text (Printed/Glossy/Copied)—default
Auto Text & Photo Separation (Printed/Glossy/Copied)
Photo (Printed/Glossy/Copied)
Pale
Generation

Duplex copy

Standard

Memory copy

Supported

ID card copy

Supported

Magnification

Automatic Magnification Selection (AMS)
Directional magnification
Directional size magnification

Print speed black and white

60 ppm

First print time

6 seconds or less

Printing process

Dry electrostatic transfer system with laser exposure method

One-component jumping development system

Print resolution

1,200 x 1,200 dpi (1-bit)

Page description languages (PDLs)

Standard
PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS

Note: IPDS unit will be available after product launch.

Printer drivers

Standard
PCL 5e, PCL 6, PostScript3

Optional
Adobe PostScript 3

Duplex printing

Standard

Mobile printing

AirPrint, Mopria®, RICOH Smart Device Connector

Print from USB/SD

Supported

Non-printable area

4 mm each side

Maximum printable area

216 x 356 mm

Scan speed

Black and white
60 ipm—simplex
100 ipm—duplex

Colour
40 ipm—simplex
62 ipm—duplex

Scan methods

Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)

Scan resolution

100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

Scan to file types

Singe-page
TIFF/JPEG, PDF, High Compression PDF, Secure PDF, Digital Signature PDF

Multi-page
TIFF, PDF, High Compression PDF, Secure PDF, Digital Signature PDF

Scan to email

Protocols
SMTP (mail server) gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A

Multi-page
TIFF, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A, searchable PDF

Scan to email—other features

Scan to email size
128–102,400 KB with restriction
700 MB without restriction

Maximum number of email addresses per send
500—from HDD address book + via operation panel + via LDAP

Maximum number of email addresses via operation panel
100 destinations per job

Maximum number of email addresses stored in HDD
2,000

Maximum number of registered group addresses in HDD
100 groups, max. 500 addresses in one group address

Maintain email addresses in HDD
Direct input via operation panel, Web Image Monitor, SmartDeviceMonitor for Admin

Search method of email addresses in HDD
By name and email address

LDAP search
Supported

Body message
Manual
Max. 80 characters via operation panel

User pre-registered
Max. 400 characters via operation panel, 80 characters over 5 lines

Preset message
This e-mail included attached file sent from <device name>.

Input subject
Manual
Max. 128 characters via operation panel

User pre-registered
Max. 20 characters via operation panel

Input file name
Supported

Simultaneous transmission
1 destination (email, folder)

Attention
To, cc, bcc

Program user settings
Up to 25 programs

Divide and send
Divide by page or size; default divide by size

Resend
Yes/No; default Yes, retry 3 times

Maximum addresses per send when combined with Scan to folder
Via address book
Condition 1—500 from address book or direct input
Condition 2—500 in single operation
Condition 3—550 combination of addresses

Manual input
Condition 1—100 from address book or direct input
Condition 2—500 in single operation
Condition 3—550 combination of addresses

Scan to folder

Protocols
SMB, FTP

Security
Client folder login (login name and password), encryption of login name and password during transmission

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by client folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally-signed PDF

Multi-page
TIFF, PDF, high-compression PDF, secure PDF, digitally-signed PDF

Scan to folder—other features

Maximum number of registered client folder addresses stored in HDD
2,000

Maintain folder addresses in HDD
Via operation panel, Web Image Monitor, SmartDeviceMonitor for Admin

Destination folder address input via operation panel
SMB—Network path>Client folder> Password
FTP—Server>Network path>User account>Password

Maximum client folders/PCs per send
50

Simultaneous transmission
Max. 500

Maximum number of group addresses
100 groups, max. 500 members per group

Input file name
Supported

Scan to file size
2,000 MB

File size when combined with Scan to email
128–102,400 KB (default 2,048 KB)—with restriction
700 MB—without restriction

Program user settings
Up to 25 programs

Divide and send
Divide by page or size; default divide by size

Note: When Scan to PC is combined with Scan to email.

Resend
Yes/No; default Yes, retry 3 times

Maximum address per send when combined with Scan to email
Via address book
Condition 1—50 from address book or direct input
Condition 2—50 in single operation
Condition 3—550 combination of addresses

Manual input
Condition 1—50 from address book or direct input
Condition 2—50 in single operation
Condition 3—550 combination of addresses

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi

TWAIN scanning—other features

Image adjustment
Brightness, Contrast, Threshold, Gamma, Halftone Pattern

Endorser
Date, Page number, Text

Supported operating systems
Windows 7, 8.1, 10
Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019

Fax types

G3 fax (1 line), Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax

Fax circuit

PSTN, PBX

Fax compatibilty

ITU-T (CCITT), G3

Fax scanning speed

Black and white
61 ipm—simplex
26 ipm—duplex

Colour
41 ipm—simplex
17 ipm—duplex

Fax modem speed

33.6 Kbps–2,400 bps–—G3, standard with Automatic Shift Down

Fax compression methods

MH, MR, MMR, JBIG

Fax resolution

Standard Mode
8 x 3.85 lines/mm, 200 x 100 dpi

Detail Mode
8 x 7.7 lines/mm, 200 x 200 dpi

Super Fine Mode (optional )
16 x 15.4 lines/mm, 400 x 400 dpi

G3 fax transmission speed

Approx. 2 seconds—200 x 100 dpi, JBIG, ITU-T No. 1 chart, TTI off, memory transmission
Approx. 3 seconds—200 x 100 dpi, MMR, ITU-T No. 1 chart, TTI off, memory transmission

Page memory size

4 MB—standard
8 MB—with optional SAF memory

Fax SAF memory capacity

4 MB (approximately 320 pages)—standard
60 MB (approximately 4,800 pages)—with optional SAF memory

Quick dials

2,000 numbers

DataOverwriteSecurity System (DOSS) – Standard: Yes
DataOverwriteSecurity System (DOSS) – Optional: Type M19—for customers who require their devices to comply with ISO 15408 Common Criteria certification
Encryption: HDD encryption
Authentication password
S/MIME
Authentication: 802.1x wired authentication
IEEE 802.11i security (WPA)
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic
User code authentication—8 digits, 1,000 user codes
WiFi Protected Setup (WPS) support

Windows

Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019

Macintosh

OS X Native v10.11 or later—PostScript 3 only

Unix

Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2

SAP

Environment—R/3, R/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B

Supported languages

Operation panel
English, French, Spanish, Brazilian Portuguese, German, Italian, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek, Thai

PCL 5e
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese, 20. Korean, 21. Simplified Chinese, 22. Traditional Chinese, 23. Japanese

PCL 6
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese

PostScript 3
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Swedish, 8. Danish

XPS
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish

Test page print—config map
1.English, 2. Thai

Others
English

Standard: @Remote Embedded
Web Image Monitor
Optional: @Remote Office
@Remote Enterprise Pro
@Remote Connector NX
Card Authentication Package
Device Software Manager
Enhanced Locked Print NX
GlobalScan NX
Java SDK
Printer Driver Packager NX
RICOH Streamline NX
Mobile apps: RICOH Smart Device Connector

Power source: 220–240 V, 50/60 Hz
Power consumption: 1,300 W or less—maximum operating power (nominal)
1,500 W or less—maximum operating power (guaranteed)
758 W—printing, operating (nominal)
88 W or less—Ready Mode (nominal)
3.1 W—Energy Saver Mode (Sleep Mode) (nominal)
Typical Electricity Consumption (TEC): 4.0 kWh
Warm-up time: 25.4 seconds or less
Recovery time: 10 seconds or less—from Ready Mode
25 seconds or less—from Energy Saver Mode (Sleep Mode)
Green labels: Blue Angel Mark (BAM), Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
Safety standards: EN60950-1
IEC60950-1
AS/NZS60950
EAC
Restriction of Hazardous Substances (RoHS)
Electromagnetic Compatibility (EMC) standards: EN55032
EN55024
EN61000-3-2
EN61000-3-3
AS/NZS CISPR32
EAC
Identification of plastic components: All plastic components that weigh more than 25 g are identified in accordance with DIN 54840 and ISO 11469 standards.
Other environmental features: Eco-friendly indicator screen
