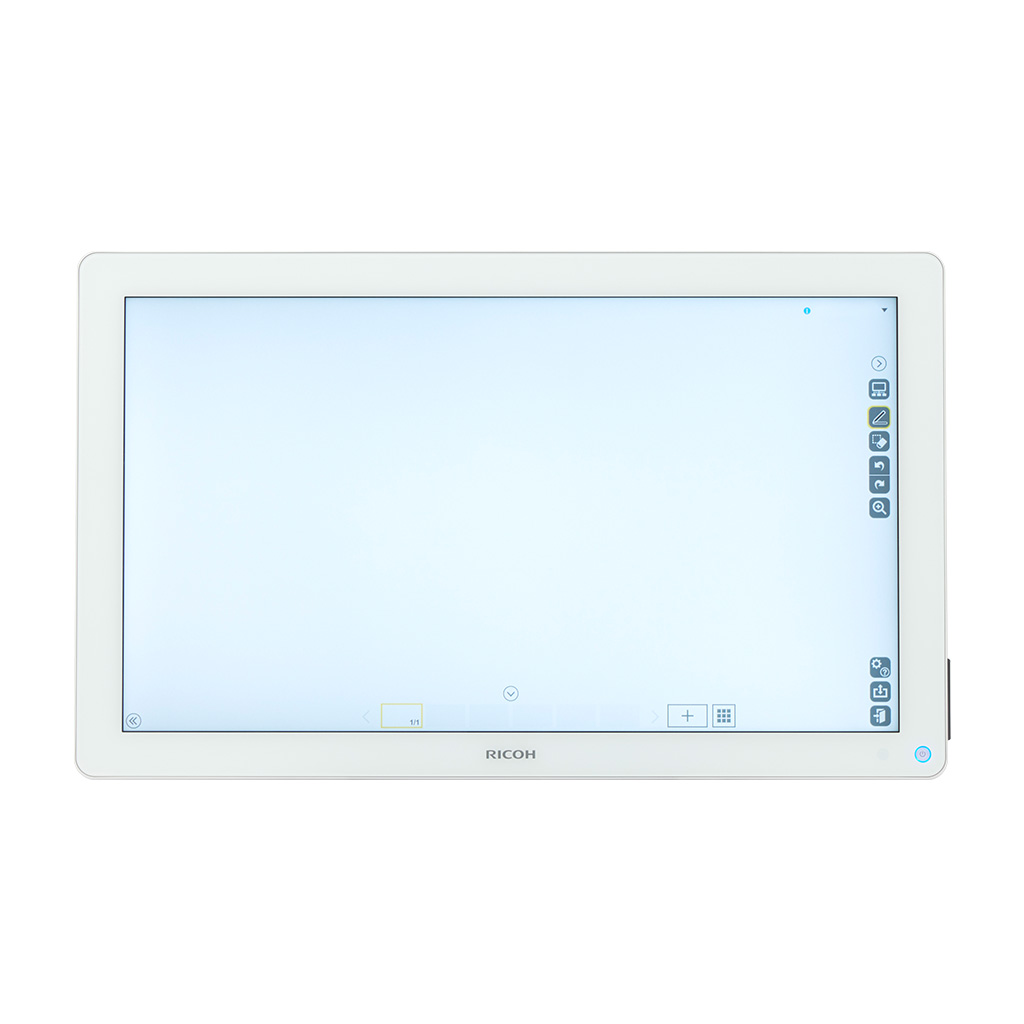

IWB D3210 Interactive whiteboard

  • 32-inch touchscreen
  • Projected Capacitive Touch (PCAP) technology
  • Optional controllers
  • Optional remote connection
Related Links
Maximise small space potential with multiplane high spec technology

Prefect for multiple huddle space uses

With superb visuals and an impressive suite of touch screen functionality, the D3210 enhances your customer-facing discussions by letting you manipulate content so it’s a natural fit for estate agencies, banks, car dealerships, architects, developers and designers – to give just a few examples.

Efficient Meeting and discussion

Designed to facilitate communication, stimulate thinking and boost productivity, the D3210 is powerfully versatile and can be dynamically orientated, making it the ideal solution for the ’huddle space’ market.

  1. Superior touch screen sensitivity thanks to capacitance intelligence
  2. Sleek design, vivid display and easy access controls

  3. Unique versatile mounting options – vertical or flat – plus 1800 screen rotation
  4. Easy to use with an intuitive UI - just plug in, switch on and connect

Specifications

Operation panel
Main power switch x 1
Up button x 1
Down button x 1
Left  button x 1
Right button x 1
Menu button x 1
Enter (Input) button x 1
What's included

Touch pen x 1
Pen tray
Mounting parts for flat orientation
Plastic clamp
Remote controller
AAA size remote controller battery
2 m power cord
3 m VGA cable
1.8 m USB 3.0 cable
5 m HDMI cable
OPS slot
User manual (Read This First guide)
Quick guide

Physical dimensions (WxDxH)—mainframe
789 x 70 x 480 mm
Weight—mainframe
15 kg or less
Panel type
LCD multi touch-screen display
Panel size
32 inches
Backlight
LED
Effective display area (W X H)
719.2 x 413.7 mm
Resolution
1,920 x 1,080 pixels
Colour reproduction
16.77 million colours maximum
Colour temperature
9,300 K—cool
8,500 K—warm
6,500 K—neutral
5,000 K—low blue light
Brightness
500 cd/m2
Aspect ratio
16:9
Contrast
3000:1
Display settings

Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Saturation, Sharpness, Colour Temperature, Treble, Bass, Balance, Volume, Mute Speaker, Audio Source PAP Setting, Aspect, Adjust Screen, Touch Feature, Language, Power Save Control Setting, Touch Control Setting, Set Monitor ID, OSD Rotation, Advanced Information, Reset

Pixel pitch
0.364 x 0.364 mm
Response speed
10 ms or less
Viewing angle (H/V)
Left and right 178 degrees, up and down 178 degrees
Audio

Input
1 x Line 3.5 mm

Output
1 x speaker out (12 W + 12 W)

Video

Video input
1 x VGA
1 x HDMI (HDCP 1.4-compliant)
1 x DisplayPort

Video output
1 x DisplayPort

Touch technology
Projected Capacitive Touch (PCAP)
Touch points
10 points maximum—four points with finger
Touch resolution
4,096 x 4,096
Touch output
USB 3.0 Type B—not available when controller is installed
Touch panel cover glass
2 mm anti-glare
Interfaces - standard

Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 3.0 Type B—for touch control

USB Hub
4 x USB 3.0 Type A

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)
Bluetooth

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 2 (optional)
Windows 10 IoT Enterprise 64-bit

Macintosh
Mac OS X 10.8–10.13—single-touch sensor
Supported languages
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese
Power source
100–240 V, 50–60 Hz
Power consumption
215 W or less—operating
295 W or less—full configuration
0.3 W or less—in Standby Mode
Reduction of environmentally sensitive materials
Restriction of Hazardous Substances (RoHS)
Environmental standards
REACH
ErP Lot 6
EU battery (2006/66/EC)
EU packaging (94/62/EC)
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
Safety standards
EN62368-1 (CE marking)
EN62368-1, AfPS GS 2014, EKI-ITB 2000 (TUV/GS)
IE62368-1 (CB attestation)
Electromagnetic Compatibility (EMC) standards

EN55032, EN55024,EN61000-3-2, EN61000-3-3
EN62311(CE)
AS/NZS CISPR32 (C-Tick)

Wireless LAN standards
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
Operating environment

Temperature
0–32ºC—operating

Humidity
10–80%—operating
