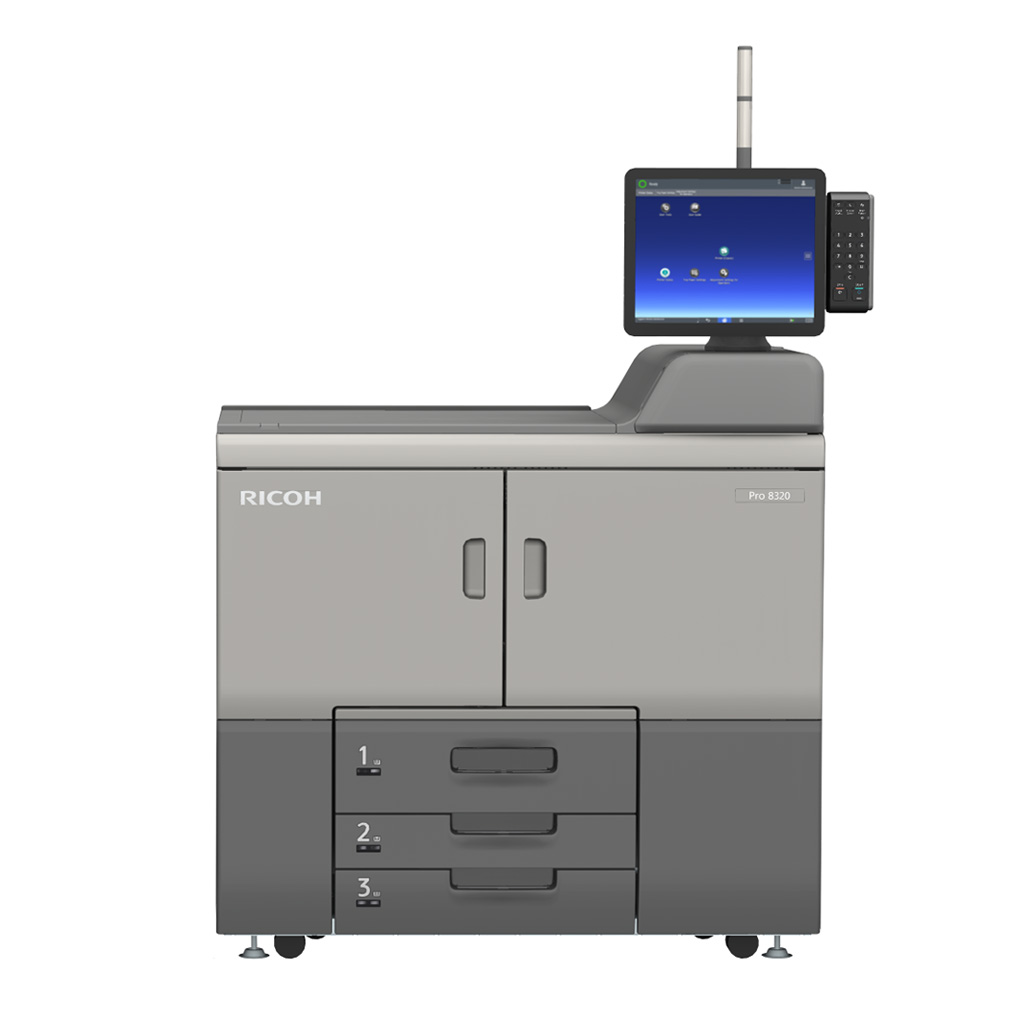

Pro 8320 Black and white production printer

  • Prints up to 136 ppm
  • Up to 350 g/m2
  • 12,600-sheet max input
  • 400,000-sheet APV

Print professional quality books, newsletters and brochures with uninterrupted productivity

Short-run black and white printing comes fast and affordably. The Pro 8320 gives commercial printer, mail houses and corporate print rooms more options.

Impressive printing, added flexibility

With the Pro 8320, both quality and quantity are delivered without sacrifice. Print on lightweight to heavyweight stock, as well as NCR, synthetic media and oversized sheets. Produce crisp documents with near-offset print quality. More time is saved with straight-forward operations, including pre-set print configurations for common print tasks and a paper library.

  1. Continuous productivity
    Designed for continuous production, even when replenishing toner or paper
  2. Do it yourself
    Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs)
  3. Mix black and white with colour
    Easily incorporate pre-printed colour work into long run black and white print jobs
  4. Security features
    Protect sensitive information with User Authentication to restrict access to specific jobs
  5. Scan and send
    Scan colour jobs and share them straight from the device for fast review and approval
Download PDF brochure

Specifications

Functions
Print
Colour
No
Printer controller - standard
GWNX
Printer controller - optional
Fiery EB-35 controller
HDD
640 GB (320 GB x 2)
Document server
Document server HDD capacity
640 GB (320 GB x 2)

Maximum stored documents
3,000 documents

Maximum pages per document
Standard
20,000—printer
15,000—document server
2,000—other

Expansion pattern A
20,000—printer
20,000—document server
2,000—other

Expansion pattern B
2,000—printer
2,000—document server
2,000—other

Maximum pages of all stored documents
15,000—standard
30,000—expansion pattern A
50,000—expansion pattern B
CPU
Intel Atom BayTrail-I 1.91 GHz
Memory - standard
2 GB
Operation panel
17" touch panel
Physical dimensions (WxDxH)—mainframe
1,141 x 900 x 1,750 mm
Physical dimensions (WxDxH)—other
1,141 x 900 x 1,020 mm—without ADF and status light
540 x 730 x 1,000 mm—5,000-sheet LCT RT5130 (A4)
865 x 730 x 1,000 mm—4,400-sheet LCT RT5110 (A3)
1,054 x 730 x 1,000 mm—4,400-sheet Vacuum-Feed LCT RT5120
690 x 561 x 210 mm—550-sheet Multi-Bypass Tray BY5020
1,090 x 561 x 210 mm—Multi-Bypass Banner Tray Type S9, when attached to Multi-Bypass Tray BY5020
330 x 730 x 1,000 mm—Bridge Unit BU5010
490 x 530 x 175 mm—1,000-sheet A3 Tray Type TK5020
1,113 x 730 x 1,490 mm—1,000-sheet Finisher SR5110
1,334 x 730 x 1,622 mm—1,000-sheet Finisher SR5110 with banner sheet option
1,113 x 730 x 1,490 mm—1,000-sheet Booklet Finisher SR5120
1,334 x 730 x 1,622 mm—1,000-sheet Booklet Finisher SR5120 with banner sheet option
1,115 x 591 x 555 mm—Trimmer Unit TR5050
740 x 730 x 1,290 mm—Cover Interposer CI5040
71 x 509 x 181 mm—Decurl Unit DU5070
900 x 730 x 1,010 mm—High-Capacity Stacker SK5040
660 x 700 x 1,010 mm—Ring Binder RB5030
1,090 x 791 x 1,387 mm—Perfect Binder GB5010
470 x 730 x 1,000 mm—Multi-Folding Unit FD5020
330 x 740 x 1,010 mm—Bridge Unit BU5020
330 x 730 x 1,010 mm—Buffer Pass Unit Type S11
1,200 x 700 x 992–1,080 mm—Plockmatic HCI3500 High-Capacity Interposer
900 x 680 x 1,060 mm—Plockmatic MPS1260 Multi-Purpose Stacker
265 x 253 x 136 mm—RPIP Interface Box Type S3
Weight—mainframe
413 kg
Weight—other
106 kg or less—5,000-sheet LCT RT5130 (A4)
185 kg or less—4,400-sheet LCT RT5110 (A3)
230 kg or less—4,400-sheet Vacuum-Feed LCT RT5120
20 kg or less—550-sheet Multi-Bypass Tray BY5020
3.5 kg or less—500-sheet Multi-Bypass Banner Tray Type S9
40 kg or less—Bridge Unit BU5010
11 kg or less—A3 Tray Type TK5020
135 kg or less—1,000-sheet Finisher SR5110
160 kg or less—1,000-sheet Booklet Finisher SR5120
75 kg—Trimmer Unit TR5050
50 kg—Cover Interposer CI5040
5 kg or less—Decurl Unit DU5070
120 kg or less—High-Capacity Stacker SK5040
15 kg or less—Roll-Away Cart
120 kg or less—Ring Binder RB5030
350 kg or less—Perfect Binder GB5010
92 kg or less—Multi-Folding Unit FD5020
40 kg or less—Bridge Unit BU5020
90 kg or less—Buffer Pass Unit Type S11
265 kg—Plockmatic HCI3500 High-Capacity Interposer
65 kg—Plockmatic MPS1260 Multi-Purpose Stacker lift unit
5 kg—Plockmatic MPS1260 Multi-Purpose Stacker docking unit
0.55 kg—RPIP Interface Box Type S3
Minimum space requirements

400 mm—left
200 mm—rear
620 mm—rear, for PM parts replacement
30 mm—right
555 mm—front

Note: PM parts maintenance tasks require additional rear clearance.

Average monthly volume
400,000 prints
Average monthly statement
250,000–600,000 prints—recommended document volume
Max monthly volume
1,000,000 prints
Machine life
60,000,000 prints or 5 years, whichever comes first
Duty cycle
4,000,000 prints per month
Supply yields

82,000 prints per toner bottle—two bottles can be installed

2,400,000 images per drum unit

860,000 prints per developer bag

1,200,000 sheets per waste toner bottle

1,300 booklets per 5 kg bag of glue

Note: Toner yields are measured with the A4 LEF/6% test chart, and will vary depending on the original document, image sizes and type, and the device operating conditions.

5,000 staples per Type X cartridge for finisher SR5110/5120—normal staple
5,000 staples per Type U cartridge for finisher SR5120—saddle stitch staple

5 cartridges per Type X refill for finisher SR5110/5120—normal staple
2 cartridges per Type T refill for finisher SR5120—saddle stitch staple

Standard input capacity (sheets)
3,300
Maximum input capacity (sheets)
12,600
Standard output capacity (sheets)
Not available
Maximum output capacity (sheets)
5,250
Paper input configuration - standard
2,200-sheet tandem paper input tray (2 x 1,100 sheets), 2 x 550-sheet paper input trays, duplex unit
Paper input configuration - optional
LCT RT5130 (A4), LCT RT5110 (A3), Vacuum-Feed LCT RT5120, Multi-Bypass Tray BY5020, Multi-Bypass Banner Sheet Tray Type S9, Vacuum-Feed Banner Sheet Tray Type S9, Bridge Unit BU5010, A3 Tray Unit TK5020
Paper output configuration - standard
Not available
Paper output configuration - optional
Booklet Finisher SR5120, Finisher SR5110, Punch unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, Cover Interposer CI5040, SR5000 Series Output Tray For Banner Sheet Type S6, Decurl Unit DU5070, High-Capacity Stacker SK5040, Ring Binder RB5030, Perfect Binder GB5010, Multi-Folding Unit FD5020, Bridge Unit BU5020 (for third party finishers)
Paper output configuration - 3rd Party
Plockmatic PBM 350e/500e, Plockmatic HCI3500 High-Capacity Interposer, Plockmatic MPS1260 Multi-Purpose Stacker, GBC StreamPunch Ultra, GBC E-Wire Binder
Supported media

Tray 1
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, back-copied paper

Trays 2 and 3
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, transparency, back-copied paper

Bypass tray BY5020
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, back-copied paper, envelopes

LCT RT5130
Tray 4—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, back-copied paper

Tray 5—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label paper, back-copied paper
Tray 6—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, transparency, back-copied paper

LCT RT5110
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper, envelopes

Vacuum-Feed LCT RT5120
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper, envelopes, NCR paper

Cover Interposer Tray CI5040
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper

Maximum paper size
13" x 19.2"
Media weight (g/m2)
52–350
Limitless paper supply
Supported
Interfaces - standard

GWNX controller
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—2 ports at rear of device, 4 on operation panel
USB 2.0 Type B—1 port at rear of device
SD card slot—on operation panel

Fiery EB-35 controller
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—4 ports at rear of device
USB 3.0—2 ports at rear of device, 3 ports on Fiery Quick Touch panel

Interfaces - optional

GWNX controller
IEEE 802.11b/g/n—for operation panel
IEEE 802.11a/b/g/n—for controller board

Fiery EB-35 controller
Not available

Network protocols - standard

GWNX controller
TCP/IP (IPv4, IPv6)

Fiery EB-35 controller
TCP/IP (IPv4, IPv6)

MIB support

GWNX controller
Standard

MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

Fiery EB-35 controller
Not available

Print speed black and white

136 ppm

Printing process
Single-drum dry electrostatic transfer system with internal transfer belt
Printing technology
40-beam Vertical-Cavity Surface-Emitting Laser (VCSEL)
Fusing
Oil-less belt-fusing method
Print resolution
2.400 x 4.800 dpi—VCSEL
1,200 x 1,200 dpi—print
Page description languages (PDLs)

Standard
PCL 5e, PCL 6, PostScript 3 and PDF emulation, JPEG, TIFF

Optional
Genuine Adobe PostScript 3 and PDF, Intelligent Printer Data Stream (IPDS), XPS

Duplex printing
Standard
Host printing
Host Print Transform (HPT), Genuine Intelligent Printer Data Stream (IPDS)—optional
Envelope printing
Supported—Bypass tray BY5020, LCT RT5110, Vacuum-Feed LCT RT5120
Maximum printable area
320 x 700 mm
Fiery controller

EFI Fiery EB-35 print controller—optional

System version
Fiery FS300 Pro

Configuration
External

Printer driver languages
PostScript 3 (CPSI v3020 and APPE v4.4), PCL 6, PCL 5e

Resolution
1,200 dpi—2-bit
600 dpi—1-bit

Fonts
PCL
80

PostScript 3
138 + 2MM

Fiery menu via operation panel
Supported

2-character control panel
Supported

Supported file formats
PS, PDF, EPS, TIFF, PCL, PDF/VT, PPML, VPS

Variable data printing (VDP)
PPML v3.0
Fiery FreeForm v1 and 2.1
PDF/VT-1 and PDF/VT-2

Note: Creo VPS is available from EFI but not supported by Ricoh.

Unauthorised copy protection
Print
Data Overwrite Security System (DOSS) - Standard
Yes
Encryption
HDD, PDF, Secure print encryption
Address book, authentication password, Locked print password encryption
Encryption of PDF password for printing secure PDFs
Authentication
802.1x wired authentication
User authentication—Windows and LDAP via Kerberos, basic, user code
Network user authentication
Other security features
IEEE 802.11i,w security
IPv6
Quota setting
Wi-Fi Protected Setup (WPS) support
SP Mode password change
DHCP option 60 and 77
Simple network security setting
IP filtering—access control
IPsec communication
Network protocol on/off
SNMPv3 support
Secure Sockets Layer (SSL)
Transport Layer Security (TLS)
Mandatory security information print
PDF digital signature
Secure print
SSH port forwarding
Copy guard security
Other supported environments

Fiery system requirements

Windows operating systems
These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
Windows 7—32- and 64-bit
Windows 8.1—32- and 64-bit
Windows 10—32- and 64-bit
Windows Server 2008 R2—64-bit
Windows Server 2012—64-bit
Windows Server 2012 R2—64-bit
Windows Server 2016—64-bit

Note: Fiery Job Monitor is not supported on 64-bit operating systems.

Macintosh operating systems
These Mac OS versions are supported for printer drivers:
Mac OS v10.11.x, v10.12.x, v10.13.x, v10.14.x

Note: Hot Folders is only supported on Power PC G5 and Intel-based Mac OS computers.

HDD—for printing and utilities except Command WorkStation
Windows—1 GB free space available (2 GB recommended)
Mac OS X—500 MB free space available (1 GB recommended)

Memory (RAM)—for printing and utilities except Command WorkStation
Windows—500 MB (2 GB recommended)
Mac OS X—500 MB (1 GB recommended)

Networking protocols
Windows—TCP/IP
Mac OS X—TCP/IP, Bonjour

WebTools
Java-enabled Web browser:
Windows—Internet Explorer 11 or later, Firefox 48, Chrome 52, Microsoft Edge for client running Windows 10
Mac OS—Safari v8, v9.12, v10.10, Firefox 48, Chrome 52

Note: On Mac OS, some versions of Firefox may not allow you to enter passwords into Configure. If this occurs, use Safari instead.

Command WorkStation
A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
TCP/IP networking protocol installed

Windows
1.0 GHz or greater Pentium 4 processor
1 GB RAM or more

Mac OS
Intel processor that supports the version of Mac OS installed
4 GB RAM or more

SeeQuence (Impose and Compose) on Command WorkStation
In addition to requirements for Command WorkStation:
Licence activation for every client workstation
Acrobat/PitStop software

Standard
Device management and monitoring
@Remote
Web Image Monitor
Printer Driver Packager NX

Workflow solutions
Streamline NX v3
TotalFlow Production Manager
TotalFlow Prep
TotalFlow BatchBuilder
TotalFlow Supervisor
FusionPro VDP Creator
Power source
220–240 V, 50/60 Hz, 16 Amps—mainframe
100–240 V, 50/60 Hz, 3 Amps—Fiery controller
Power consumption
3,150 W—maximum power
Power consumption—options
210 W—5,000-sheet LCT RT5130
324 W or less—4,400-sheet LCT RT5110
1,000 W or less excluding peak consumption—4,400-sheet Vacuum-Feed LCT RT5120
70 W—550-sheet Multi-Bypass Tray BY5020
150 W or less—1,000-sheet Finisher SR5110
150 W or less—1,000-sheet Booklet Finisher SR5120
250 W or less–maximum, 75 W or less–average—Trimmer Unit TR5050
95 W excluding peak consumption—Cover Interposer CI5040
30 W or less—Decurl Unit DU5070
144 W—High-Capacity Stacker SK5040
400 W or less—Ring Binder RB5030
623 W or less—Perfect Binder GB5010
240 W or less—Multi-Folding Unit FD5020
200 W or less—Buffer Pass Unit Type S11
1.6 W—Energy Saver Mode (Sleep Mode)
150 W—EFI Fiery EB-35
Typical Electricity Consumption (TEC)
17,628 Wh
Warm-up time
300 seconds or less
Sound power level

Mainframe
61.5 dB—standby
74 dB—printing

Full system
65.5 dB—standby
82.6 dB—printing

Emission levels
0.1 mg/h or less—benzene
4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde
Total Volatile Organic Compounds (TVOC)
18 mg/h—printing
2 mg/h—standby
Reduction of environmentally sensitive materials
100% chrome-free steel plates—hexavalent chromium
100% lead-free solder used in PCBs—lead
0%—cadmium
0%—mercury
0%—PBB/PBDE
Energy saving standards
Eco Declaration—declaration or application by a local sales company is required
Safety standards

EN62368-1
IEC60950-1
IEC62368-1
CNS14336-1

Electromagnetic Compatibility (EMC) standards

EN62311
EN55022
EN55024
EN61000-3-2, EN61000-3-3
AS/NZS CISPR22
CNS13438

Identification of plastic components
All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Wireless LAN standards
EN301489-1
EN301489-17
AS/NZS 4268
LP0002
